Description

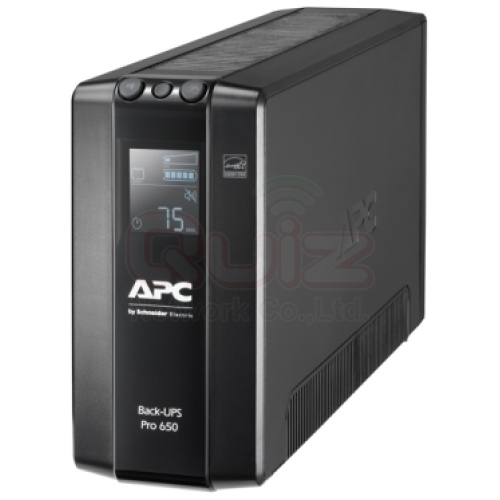

ขอใบเสนอราคา ขาย APC-BR650MI Back UPS Pro BR 650VA/390Watt, 6 Outlets, AVR, LCD Interface เครื่องสำรองไฟ ราคา ถูก ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
Technical Specifications
Output
Max Configurable Power (Watts)
390 Watts / 650VA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
10 ms typical : 12 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
176 – 294V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
12hour(s)
Nominal Battery Voltage
12 V
Replacement Battery
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
6 Watts
Runtime
Communications & Management
Interface Port(s)
USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Data Line Protection
RJ45 network line – 10/100/1000 Base-T Ethernet
Filtering
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
190MM, 19.0CM
Maximum Width
91MM, 9.1CM
Maximum Depth
310MM, 31.0CM
Net Weight
6.4KG
Shipping weight
7.4KG
Shipping Height
255MM, 25.5CM
Shipping Width
440MM, 44.0CM
Shipping Depth
143MM, 14.3CM
Master Carton Dimensions (Length x Width x Height)
279 x 457 x 229MM
Master Carton Units
2.0
Master Carton Weight
15.65
SCC Codes
10731304346934
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
13.0BTU/hr
Conformance
Approvals
A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI
Equipment protection policy
Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP
Standard warranty
3 years Onsite 8×5
