Description

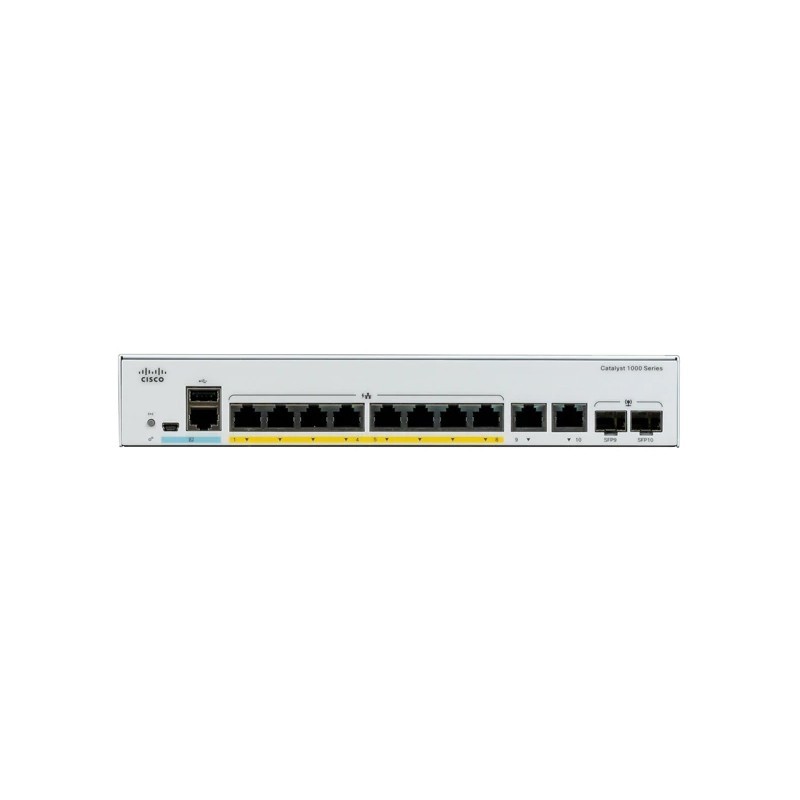

C1000-8T-E-2G-L Catalyst 1000 8port GE, Ext PS, 2x1G SFP
ขอใบเสนอราคา ขาย C1000-8T-E-2G-L Catalyst 1000 8port GE, Ext PS, 2x1G SFP Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
Product Code |
C1000-8T-E-2G-L |
Description | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, with external PS |
Gigabit Ethernet ports | 8 |
Uplink interfaces | 2 SFP/ RJ-45 combo |
PoE+power budget | |
Fanless | Y |
Dimensions (WxDxH in inches) | 10.56 x 7.28 x 1.73 |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Forwarding bandwidth | 10 Gbps |
Switching bandwidth | 20 Gbps |
Forwarding rate(64—byte L3 packets) | 14.88 Mpps |
Product Details
The Cisco Catalyst 1000 Series Switches provides these features:
* 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
* 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
* Perpetual PoE+ support with a power budget of up to 740W
* CLI and/or intuitive web UI manageability options
* Network monitoring through sampled flow (sFlow)
* Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
* Compact fanless models available with a depth of less than 13 inches (33 cm)
*Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
* Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
Compare to Similar Items
Table 2 shows the comparison.
Product Code | C1000-8FP-2G-L | C1000-8FP-E-2G-L | C1000-8P-2G-L | C1000-8P-E-2G-L | C1000-8T-2G-L | C1000-8T-E-2G-L |
Description | 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, with external PS | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks | 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, with external PS |
Gigabit Ethernet ports | 8 | 8 | 8 | 8 | 8 | 8 |
Uplink interfaces | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo | 2 SFP/ RJ-45 combo |
PoE+power budget | 120W | 120W | 67W | 67W | ||
Fanless | Y | Y | Y | Y | Y | Y |
Dimensions (WxDxH in inches) | 10.56 x 12.73 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 12.73 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 7.28 x 1.73 | 10.56 x 7.28 x 1.73 |
CPU | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz | ARM v7 800 MHz |
DRAM | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB | 512 MB |
Flash memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
Forwarding bandwidth | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps |
Switching bandwidth | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps | 20 Gbps |
Forwarding rate(64—byte L3 packets) | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps | 14.88 Mpps |
