[EWP-WA6622-FIT]

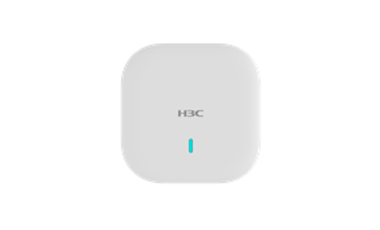

H3C EWP-WA6622-FIT New Generation 802.11ax Indoor AP ราคา Discount
฿ 23,650.00Non-Vat ฿ 25,305.50Vat 7%
Contact
ติดต่อสอบถามเช็คสต็อค, ใบเสนอราคาและงานติดตั้งได้เบอร์ด้านล่างนี้
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
Description
ขอใบเสนอราคา ขาย H3C EWP-WA6622-FIT New Generation 802.11ax Indoor AP ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
EWP-WA6622-FIT H3C WA6622 Internal Antennas 6 Streams Dual Radio 802.11ax/ac/n Access Point,FIT
Item
WA6622
WA6628
WA6638
| Weight | 0.94 kg | 1.28 kg | 1.28 kg | |
| Dimensions (H × W × D) | 43 × 210 × 210 mm (1.69 × 8.27 × 8.27 in) | 52 × 239 × 236 mm (2.05 × 9.41 × 9.29 in) | 52 × 239 × 236 mm (2.05 × 9.41 × 9.29 in) | |
| Uplink Ethernet ports | Port 1: 100M/1000M/2.5G/5G, RJ-45
Port 2: 100/1000M, RJ-45, IoT |
Port 1: 100/1000M/2.5G/5G/10G, RJ-45
Port 2: 100/1000M, RJ-45 |
Port 1: 100/1000M/2.5G/5G/10G, RJ-45
Port 2: 100/1000M, RJ-45 |
|
| PoE+ | Port 1: 802.3at/af | Port 1: 802.3bt/at
Port 2: 802.3at Both ethernet ports support PoE and they can work simultaneously |
Port 1: 802.3bt/at | |
| Local power supply | 54 VDC | 54 VDC | 54 VDC | |
| Passive Power over Ethernet (48V) | Supported | Supported | Supported | |
| PoE power out | Port 2 (GE) | Not supported | Port 2 (GE) | |
| Console port | One (RJ-45) | |||
| USB port | One | |||
| Built-in antenna | Built-in omni-directional antenna
5dBi antenna [email protected] 5dBi antenna gain @5GHz |
Built-in omni-directional antenna
3dBi antenna gain @2.4GHz 4dBi antenna gain @5GHz |
Built-in omni-directional antenna
3dBi antenna gain @2.4GHz 4dBi antenna gain @5GHz 4dBi antenna gain @5GHz |
|
| Built-in Bluetooth | Supported (Support to switch RFID through software) | |||
| IoT Extension | BLE, RFID, ZigBee, etc. | Not supported | BLE, RFID, ZigBee, etc. | |
| Working frequencies | 802.11ax/ac/n/a: 5.725 to 5.850 GHz; 5.47 to 5.725 GHz; 5.15 to 5.35 GHz
802.11ax/b/g/n: 2.4 to 2.483 GHz |
|||
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, [email protected]/11Mbps) MIMO-OFDM (11n): MCS 0-31 MIMO-OFDM (11ac): MCS 0-9 MIMO-OFDM (11ax): MCS 0-11 |
|||
| Modulation mode | 11b: DSS: [email protected]/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
|||
| Maximum transmit power | 2.4G: 25dBm, 5G: 30 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) | |||
| Adjustable power granularity | 1 dBm | |||
| Reset/restoration to factory default | Supported | |||
| State LED | Alternating flashing mode, orange/green/blue for different working states, breathing mode | |||
| Temperature | Operating temperature: -10°C to +55°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F) |
|||
| Humidity | Operating: 5% to 95% (non-condensing)
Storage: 5% to 95% (non-condensing) |
|||
| Protection class | IP42 | |||
| Overall power consumption | < 30 W (excluding IoT modules and USB) | |||
| Safety compliance | GB4943, EN60601-1-2 (medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 | |||
| EMC | GB9254, EN301 489, EN55022, FCC Part 15, RSS-210 | |||
| Radio frequency certification | FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC | |||
| Health | FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 | |||
| MTBF | > 250000 hours | |||
Software specifications
Item
WA6622
WA6628
WA6638
| Compliance | 802.11 | Indoor, compliant with 802.11a/b/g/n/ac/ax | ||
| 802.11ax | Working frequencies and MIMO | 5GHz, 4×4:4 MU-MIMO 2.4Gbps
2.4GHz, 2×2:2 MU-MIMO 0.575Gbps |
5GHz, 8×8:8 MU-MIMO 4.8Gbps
2.4GHz, 4×4:4 MU-MIMO 1.15Gbps |
5GHz (1), 4×4:4 MU-MIMO 2.4Gbps
5GHz (2), 4×4:4 MU-MIMO 2.4Gbps 2.4GHz, 4×4:4 MU-MIMO 1.15Gbps |
| 20MHz/40MHz/80MHz bandwidth | Supported | |||
| 80MHz+80MHz/160MHz bandwidth | Supported | Supported | Supported | |
| Maximum transmission speed | 2.975 Gbps | 5.95 Gbps | 5.95 Gbps | |
| A-MPDU(TX/RX) | Supported | |||
| A-MSDU(TX/RX) | Supported | |||
| Maximum likelihood decoding (MLD) | Supported | |||
| Maximum-ratio combining (MRC) | Supported | |||
| Space-time block coding (STBC) | Supported | |||
| Low-density parity-check (LDPC) | Supported | |||
| Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD) | Supported | |||
| DFS(dynamic frequency selection) | Supported | |||
| Transmit Beamforming | Supported | |||
| WLAN basics | Maximum number of clients per radio | 512 | ||
| Virtual APs | 32
As a best practice, configure a maximum of five virtual APs for each radio. |
|||
| Open system/shared key authentication | Supported | |||
| Broadcast probe request acknowledge control | Supported | |||
| Concurrent login of WPA, WPA2, WPA3 and Pre-RSNA users | Supported | |||
| RTS/CTS | Supported | |||
| CTS-to-self | Supported | |||
| 802.11k and 802.11v smart roaming | Supported | |||
| 802.11r fast transition roaming | Supported | |||
| Hide SSID | Supported | |||
| Advanced Traffic Management | Supported | |||
| Hotspot 2.0 | Supported | |||
| Restrict low rate/sticky terminals access | Supported | |||
| Channel reuse | Supported | |||
| Receiver sensitivity adjustment | Supported | |||
| Automatic channel/power/bandwidth adjustment | Supported | |||
| WLAN extension | Station related | Abnormal offline check, station aging, statistics and status query | ||
| Client number limit | Supported | |||
| Link integrity check | Supported | |||
| Repeater mode | Supported | |||
| Security policy | Encryption | WEP-64/128/152bit, dynamic WEP, TKIP, CCMP ,WPA3,AES,EAP | ||
| Multiple triggering conditions for unicast and broadcast key update | ||||
| 802.11i | Supported | |||
| Authentication | 802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK
H3C WX series access controllers might be required for authentication. |
|||
| User isolation | Layer 2 user isolation
SSID-based user isolation |
|||
| Forwarding security | Packet filtering
MAC address filtering Broadcast storm suppression |
|||
| Wireless terminal access | Wireless EAD | |||
| SSID and VLAN binding | Supported | |||
| Rogue device detection and countermeasure | Supported | |||
| Dynamic ARP Inspection (DAI) | Supported | |||
| IP Source Guard (IPSG) | Supported | |||
| WIDS/WIPS | Supported | |||
| Management frame protection (802.11w) | Supported | |||
| AAA | RADIUS client | Supported | ||
| Multiple-domain authentication server | Supported | |||
| Backup authentication server | Supported | |||
| Layer 2 and Layer 3 features | IP address configuration | Static IP (available only in fat AP mode)
DHCP assigned IP (Option 60) |
||
| Native IPv6 | Supported | |||
| IPv6 Portal | Supported | |||
| IPv6 SAVI | Supported | |||
| ACL | IPv4/IPv6 | |||
| Local forwarding | Local forwarding based on SSID and VLAN | |||
| Multicast | IGMP Snooping/MLD Snooping | |||
| DHCP Server/client/relay | Supported | |||
| NAT | Supported | |||
| Link Layer Discovery Protocol (LLDP) | Supported | |||
| SSID-based VLAN assignment | Supported | |||
| EoGRE Tunnel | Supported | |||
| QoS | 802.11e | Wi-Fi Multimedia (WMM) | ||
| Priority | 802.1p priority and marking on Ethernet ports | |||
| Priority mapping for wired and wireless packets | ||||
| QoS policy mapping | SSID/VLAN and QoS policy mapping | |||
| Layer 2 to Layer 4 packet filtering and traffic classification | Supported | |||
| CAR | Supported | |||
| Client bandwidth management | Station-based bandwidth allocation
SSID-based bandwidth allocation |
|||
| Load balancing | Traffic-based load balancing
Session-based load balancing Frequency-based load balancing (supports dual-band) |
|||
| Airtime optimization | Supported | |||
| Airtime fairness | Supported | |||
| Band navigation(5G priority) | Supported | |||
| Multicast optimization (IPv4/IPv6) | Supported | |||
| Call Admission Control (CAC) | Session-based CAC
Channel usage-based CAC |
|||
| Layer 4-7 application identification | Coupled with H3C WLAN ACs, the APs can identify variety of applications and policy control can be implemented including priority adjustment, scheduling, blocking, and rate limiting on users | |||
| SVP Phone | Supported | |||
| Power saving | PPC | Supported | ||
| Green AP mode | Supported | |||
| Dynamic MIMO power saving | Supported | |||
| E-APSD | Supported | |||
| WMM Power Save | Supported | |||
| Management
and maintenance |
Network management | Trap, HTTP(S), SSH, Telnet, FTP/TFTP, SNMP V1/V2/V3 only applicable in Cloud/Fat mode | ||
| Management SSID | Supported | |||
| Syslog | Supported | |||
| Remote probing and analysis | Supported | |||
| AP Working Mode | Fit/Anchor/Cloud/Fat | |||
| Wi-Fi Certified | IEEE 802.11a/b/g/n/ac/ax, WMM, WPA, WPA2 and WPA3 – Enterprise, Personal (SAE), Enhanced Open (OWE),Wi-Fi Alliance | |||
