- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.
- 16 * 100/1000 Mbps Base-T RJ45 ports for data transmission and power supply,
- 2 * 1000 Mbps Base-X SFP slots.
- 8K MAC address table and MAC address auto-learning.
- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.
- 36Gbps backplane bandwidth.
- Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 250W.
- 4 modes: standard, priority, extend and VLAN.
- Rack mounting.

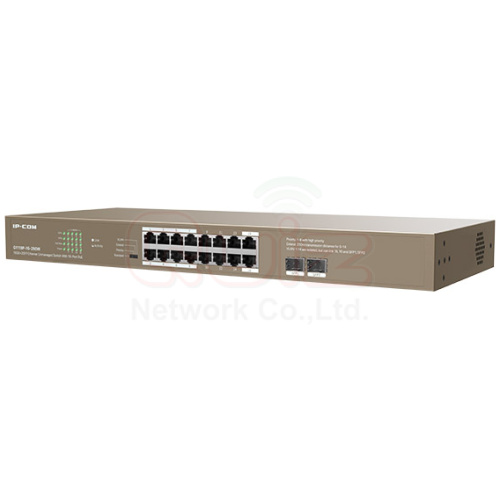

ModelG1118P-16-250WInterfaces16 * 100/1000 Mbps Base-T RJ45 ports (Data/Power)
2* 1000 Mbps Base-X SFP portLightning protection≥6KVForwarding modeStore-and-forwardSwitching capability36 GbpsPacket forwarding rate26.8 MppsBuffer2MMAC address table8KPoE supplyPorts 1-16 support standard IEEE802.3af/at 30W output per PoE port
230W output of the total PoE PowerPower consumption250W output the whole deviceInput voltageAC: 100-240V~50/60HzDimensions440*178.8*44mmFour ModesStandard: Default mode of the switch. In this mode, it works as an unmanaged switch;all ports can communicate with each other separately.
Priority: In this mode, port 15,16,SFP1 and SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port. All ports can communicate with each other separately.
Extend: In this mode, data rate of ports 9 – 14 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
VLAN: In this mode, ports 1 – 14 of the switch can communicate with port15,16, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast.Operating environmentOperating Temperature: 0℃~45℃ (32℉~113℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensingCertificatesFCC、CE、RoHS
| Model | G1118P-16-250W |
| Interfaces | 16 * 100/1000 Mbps Base-T RJ45 ports (Data/Power) 2* 1000 Mbps Base-X SFP port |
| Lightning protection | ≥6KV |
| Forwarding mode | Store-and-forward |
| Switching capability | 36 Gbps |
| Packet forwarding rate | 26.8 Mpps |
| Buffer | 2M |
| MAC address table | 8K |
| PoE supply | Ports 1-16 support standard IEEE802.3af/at 30W output per PoE port 230W output of the total PoE Power |
| Power consumption | 250W output the whole device |
| Input voltage | AC: 100-240V~50/60Hz |
| Dimensions | 440*178.8*44mm |
| Four Modes | Standard: Default mode of the switch. In this mode, it works as an unmanaged switch;all ports can communicate with each other separately. Priority: In this mode, port 15,16,SFP1 and SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port. All ports can communicate with each other separately. Extend: In this mode, data rate of ports 9 – 14 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN: In this mode, ports 1 – 14 of the switch can communicate with port15,16, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. |
| Operating environment | Operating Temperature: 0℃~45℃ (32℉~113℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certificates | FCC、CE、RoHS |
