- Comply with multiple standards, including IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, and IEEE 802.1s

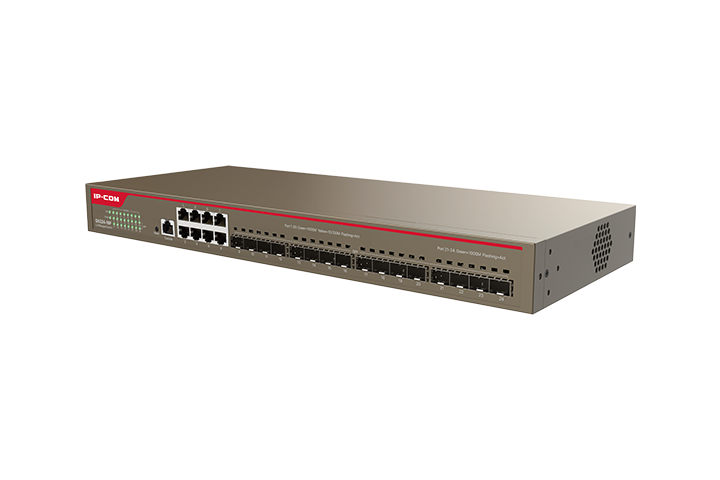

- 8 x 10/100/1000Base-T Ethernet port, 16 x independent 1000Base-X SFP port, 1 x Console port
- MAC address table with 16K entries and MAC address auto-learning
- 12Mb large buffer
- Switching capacity: 48 Gbps
- Support layer-3 management features, such as IPv4 static routing protocol and DHCP server
- Support service features, such as VLAN, ACL, QoS, IGMP Snooping, SNMP and Telnet
- Support IMS cloud management and local visualization management
| Hardware features | |
|---|---|
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, and IEEE 802.1s |
| LED indicators | One Link/Act LED indicator for each port One Power LED indicator One SYS LED indicator |
| Fixed ports | 8 x 10/100/1000Base-T Ethernet port 16 x 1000Base-X SFP slot |
| Lightning protection | Port: 6 kV Power supply: 6 kV |
| Forwarding mode | Store-and-forward |
| Switching capacity | 48 Gbps |
| Packet forwarding rate | 35.7 Mpps |
| Switching buffer | 12 Mbit |
| MAC address table | 16K |
| Input voltage | 100 – 240V AC 50/60Hz |
| Dimensions | 440 mm * 179.6 mm * 44 mm(L x W x H) |
| Environment | Operating temperature: 0°C – 45°C Operating humidity: (10% – 90%)RH, non-condensing Storage temperature: -40°C – 70°C Storage humidity: (5% – 90%)RH, non-condensing |
| Certificates | CCC, FCC, CE, RoHS |
| Software features | |
| Security features | Support ARP receiving limit Support discarding unknown MAC addresses Support DoS attack defense Support 802.1X security authentication Support RADIUS authentication |
| VLAN | Support 802.1Q VLAN Support VLAN layer-3 interface Support three port modes: Access, Trunk and Hybrid |
| DHCP | Support DHCP server Support DHCP relay Support DHCP snooping Support Option 82 policy configuration |
| L3 routing | Support inter-VLAN routing Support IPv4 static routing Support dynamic ARP and static ARP Support ARP aging configuration |
| Port aggregation | Support static aggregation Support LACP dynamic aggregation Support a maximum of 32 aggregation groups and a maximum of 8 member ports in each group |
| STP | Support IEEE 802.1d STP (Spanning Tree Protocol) Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Support edge ports Support BPDU statistics |
| Multicast | Support IGMP snooping v1/v2/v3 Support fast leave |
| Port mirroring | Support N : 1 port mirroring |
| QoS | Support SP (Strict Priority) Support SWRR (Simple Weighted Round Robin) Support WRR (Weighted Round Robin) Support 802.1P port trust mode Support DSCP port trust mode Support a maximum of 8-queue service quality mapping Support Tail Drop Support storm suppression Support port speed limit |
| ACL | Support MAC ACL Support IPv4 ACL |
| Loading and upgrade | Support FTP/TFTP/HTTP upgrade Support configuration import and export |
| Cloud management | Support configuration delivery from IMS cloud platform Support log reporting and fault detection Support remote maintenance: reboot, backup, and upgrade |
| Local visualization management | Support discovery of such network devices as routers, switches, APs based on LLDP Support IP camera discovery based on ONVIF protocol Support automatic generation of topology Support local view and main view Support online/offline status detection for devices Support remote IP camera reboot Support loop alerts Support custom device types and device names |
| Management and maintenance | Support CLI configuration Support Telnet remote configuration Support configuring through Console port Support SNMP v1/v2/v3 Support web management Support system logs Support log classification Support NTP Support Ping & Tracert tests Support memory and CPU monitoring |
