[LS-5560X-34S-EI-GL]

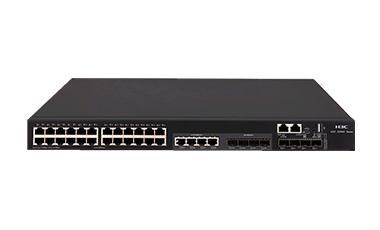

H3C LS-5560X-34S-EI-GL Series Converged Gigabit Switches ราคา Discount
฿ 126,610.00Non-Vat ฿ 135,472.70Vat 7%
Contact
ติดต่อสอบถามเช็คสต็อค, ใบเสนอราคาและงานติดตั้งได้เบอร์ด้านล่างนี้
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
Description
ขอใบเสนอราคา ขาย H3C LS-5560X-34S-EI-GL Series Converged Gigabit Switches ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
LS-5560X-34S-EI-GLH3C S5560X 28×10/100/1000 BASE-T, 4xSFP (Combo), 4x1G/10G BASE-X SFP+, 2x40G QSFP+
Technical specifications
| Item | S5560X-30C-EI | S5560X-54C-EI | S5560X-30F-EI | S5560X-54F-EI | S5560X-30F-EIF |
| CPU | Dual Core, 800MHz | ||||
| Box switching capacity | 598Gbps | ||||
| Port switching capacity | 288Gbps | 336Gbps | 288Gbps | 336Gbps | 288Gbps |
| Packet forwarding rate | 216 Mpps | 252 Mpps | 216 Mpps | 252 Mpps | 216 Mpps |
| Dimensions (H × W × D) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | 43.6 × 440 × 220 mm (1.72 × 17.32 × 8.66 in) |
| Weight | ≤ 6.7 kg (14.77 lb) | ≤ 7.0 kg (15.43 lb) | ≤ 6.6 kg (14.55 lb) | ≤ 6.7 kg (14.77 lb) | ≤ 3.2 kg (7.05 lb) |
| Flash/SDRAM | 1GB /2GB | ||||
| Management Ethernet ports | 1 | ||||
| Console ports | 1 × RJ-45 console port
1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports. |
||||
| Service ports | 24 × 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces)
4 × 10G SFP+ ports |
48 × 10/100/1000Base-T autosensing Ethernet ports
4 × 10G SFP+ ports |
24 × SFP ports (including 8 combo interfaces)
4 × 10G SFP+ ports |
48 × SFP ports
4 × 10G SFP+ ports |
24 × SFP ports (including 8 combo interfaces)
4 × 10G SFP+ ports 2 x 40G QSFP+ ports |
| Expansion slots | 1 | 0 | |||
| Stacking bandwidth | Maximum 160Gbps | ||||
| Compatible interface module | 2-port 40GE QSFP+ interface module
2-port 10G SFP+ interface module 2-port 25G SFP28 interface module 2-Port 10G BASE-T Interface Card with MACSec 2-Port 10G SFP Plus Interface Card with MACSec 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module 8-Port 10G SFP Plus with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module |
N/A | |||
| AC input voltage | PSR150-A1&PSR150-A2:
Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz |
||||
| DC input voltage | PSR150-D1:
Rated: –48 VDC to –60 VDC Max: –36 VDC to –72 VDC You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS800-A or RPS1600-A). |
||||
| Min. power consumption | Single AC input: 24 W
Dual AC inputs: 29 W Single DC input: 24 W Dual DC inputs: 28 W |
Single AC input: 27 W
Dual AC inputs: 31 W Single DC input: 24 W Dual DC inputs: 29 W |
Single AC input: 24 W
Dual AC inputs: 29 W Single DC input: 24 W Dual DC inputs: 30 W |
Single AC input: 30 W
Dual AC inputs: 37 W Single DC input: 30 W Dual DC inputs: 36 W |
AC:20W
DC:23W |
| Max. power consumption | Single AC input: 87 W
Dual AC inputs: 91 W Single DC input: 88 W Dual DC inputs: 95 W |
Single AC input: 88 W
Dual AC inputs: 93 W Single DC input: 89 W Dual DC inputs: 96 W |
Single AC input: 112 W
Dual AC inputs: 116 W Single DC input: 113 W Dual DC inputs: 122 W |
Single AC input: 130 W
Dual AC inputs: 134 W Single DC input: 132 W Dual DC inputs: 140 W |
AC:71W
DC:72W |
| MTBF(Year) | 178.67 | 151.28 | 170.05 | 149.97 | 170.05 |
| MTTR(Hour) | 1 | 1 | 1 | 1 | 1 |
Technical specifications (continued)
| Item | S5560X-30C-PWR-EI | S5560X-54C-PWR-EI | S5560X-34S-EI | S5560X-54S-EI |
| CPU | Dual Core, 800MHz | |||
| Box switching capacity | 598Gbps | |||
| Port Switching capacity | 288Gbps | 336Gbps | 288Gbps | 336Gbps |
| Packet forwarding rate | 216 Mpps | 252 Mpps | 216 Mpps | 252 Mpps |
| Dimensions (H × W × D) | 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in) | 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in) | 43.6 × 440 × 260 mm (1.72 × 17.32 × 10.24 in) | 43.6 × 440 × 260 mm (1.72 × 17.32 × 10.24 in) |
| Weight | ≤ 9.2 kg (20.28 lb) | ≤ 9.6 kg (21.16 lb) | ≤ 3.6 kg (7.94 lb) | ≤ 3.9 kg (8.60 lb) |
| Flash/SDRAM | 1GB/2GB | |||
| Management Ethernet ports | 1 | |||
| Console ports | 1 × RJ-45 console port
1 × Micro-USB console port Only the Micro-USB console port is available when you connect both ports. |
|||
| Service ports | 24 × 10/100/1000Base-T autosensing Ethernet ports
4 × 10G SFP+ ports |
48 × 10/100/1000Base-T autosensing Ethernet ports
4 × 10G SFP+ ports |
28 × 10/100/1000Base-T autosensing Ethernet ports (including 4 combo interfaces)
4 × 10G SFP+ ports 2 × 40G QSFP+ ports |
48 × 10/100/1000Base-T autosensing Ethernet ports
4 × 10G SFP+ ports 2 × 40G QSFP+ ports |
| Expansion slots | 1 | 1 | N/A | N/A |
| Stacking bandwidth | Maximum 160Gbps | |||
| Compatible interface modules | 2-port 40GE QSFP+ interface module
2-port 25G SFP28 interface module 2-port 10G SFP+ interface module 2-Port 10G BASE-T Interface Card with MACSec 2-Port 10G SFP Plus Interface Card with MACSec 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module 8-Port 10G SFP Plus with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module |
N/A | N/A | |
| AC input voltage | PSR360-56A/PSR720-56A:
Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz PSR1110-56A: Rated: 115 VAC to 240 VAC @ 50 Hz/60 Hz Max: 102.5 VAC to 264 VAC @ 47 Hz to 63 Hz |
Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz |
||
| DC input voltage | PSR560-56D:
Rated: –48 VDC to –60 VDC Max: –36 VDC to –72 VDC You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS1600-A). |
Rated: –48 VDC to –60 VDC
Max: –36 VDC to –72 VDC You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS800-A or RPS1600-A). |
||
| Min. power consumption | Single AC input: 31 W
Dual AC inputs: 31 W Single DC input: 43 W Dual DC inputs: 60 W |
Single AC input: 33 W
Dual AC inputs: 40 W Single DC input: 48 W Dual DC inputs: 66 W |
Single AC input: 19 W | Single AC input: 22 W |
| Max. power consumption | Single 1110 W AC input: 926 W (including 720 W for PoE)
Dual 1110 W AC inputs: 928 W (including 720 W for PoE) Single 560 W DC input: 486 W (including 360 W for PoE) Dual 560 W DC inputs: 876 W (including 720 W for PoE) |
Single 1110 W AC input: 1090 W (including 810 W for PoE)
Dual 1110 W AC inputs: 1742 W (including 1440 W for PoE) Single 560 W DC input: 502 W (including 360 W for PoE) Dual 560 W DC inputs: 1003 W (including 810 W for PoE) |
Single AC input: 56 W
Single DC input: 57 W |
Single AC input: 66 W
Single DC input: 68 W |
| MTBF(Year) | 151.08 | 133.40 | 109.80 | 101.50 |
| MTTR(Hour) | 1 | 1 | 1 | 1 |
| Packet buffer | 4M | |||
| Operating temperature | 0ºC to 45ºC (32°F to 113°F)
-60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
|||
| Storage temperature | -40℃ to 70℃(-40℉ to 158℉) | |||
| Operating &storage humidity | 5% RH to 95% RH, non-condensing | |||
| SDN/OpenFlow | OpenFlow 1.3
Multiple controllers (equal/master/slave controller role) Concurrent processing of multiple flow tables Group table Meter |
|||
| VXLAN | VXLAN L2 switching
VXLAN L3 routing VXLAN VTEP IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane OpenFlow+Netconf centralized control plane |
|||
| Link aggregation | 1G/10G/40G port aggregation
Static aggregation Dynamic aggregation Multichassis link aggregation |
|||
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage
Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
|||
| Jumbo frame | A maximum of 10000 bytes | |||
| MAC address table | 64K MAC address entries
Static MAC address Blackhole MAC address MAC learning limit |
|||
| ARP Table | ARP entries: 32K
Static entry Gratuitous ARP Common proxy ARP and local proxy ARP Dynamic ARP inspection ARP anti-attack ARP flood suppression ARP source suppression ARP detection based on DHCP snooping safety entries, 802.1X entries, and IP/MAC static binding entries |
|||
| VLAN | Port-based VLAN (up to 4094 VLANs)
MAC-based VLAN Protocol-based VLAN IP subnet based VLAN QinQ and flexible QinQ VLAN mapping Voice VLAN MVRP ((GVRP analog)) |
|||
| Loop-free redundant Layer 2 topology | STP/RSTP/MSTP
STP Root Guard BPDU Guard BPDU Blocking and Root Guard Link Detection (UDLD) Digital Diagnostic Monitor (DDM) G.8032 Ethernet ring protection switching (ERPS) |
|||
| DHCP | DHCP client
DHCP snooping DHCP relay DHCP server DHCP snooping Option 82/DHCP relay Option 82 |
|||
| IRF2 | IRF2
Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces Local device stacking and remote device stacking Support up to 9 devices stacking |
|||
| IP routing | IPv4 routing number 32K
IPv6 routing number 16K Static routing RIPv1/v2 and RIPng OSPFv1/v2/v3 BGP and BGP4+ for IPv6 Equal-cost multi-path routing (ECMP) and policy routing VRRP/VRRPv3 |
|||
| IPv6 | Neighbor Discovery (ND)
PMTU IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP Manual tunnel 6to4 tunnel ISATAP tunnel GRE tunnel |
|||
| Multicast | IGMP Snooping v1/v2/v3 and MLD Snooping v1/v2
PIM Snooping MLD Proxy Multicast VLAN IGMP v1/v2/v3 and MLD v1/v2 PIM-DM, PIM-SM and PIM-SSM MSDP and MSDP for IPv6 MBGP and MBGP for IPv6 |
|||
| MPLS | Support MPLS
Support MCE Support MPLS VPN, VPLS |
|||
| Mirroring | Flow mirroring
N:4 port mirroring Local port mirroring and remote port mirroring Policy-based Mirroring Traffic Mirroring |
|||
| QoS/ACL | Layer 2 to Layer 4 packet filtering
Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP/UDP port, and VLAN Time range-based ACL Bi-directional ACLs (inbound and outbound) VLAN-based ACL issuing Rate limit for receiving and transmitting packets (a minimum CIR of 8 Kbps) Packet redirection 802.1p priority and DSCP priority Committed Access Rate (CAR) Flexible queue scheduling algorithms based on both port and queue, including SP, WRR, and SP+WRR |
|||
| Security | Hierarchical user management and password protection
MAC-based authentication 802.1X Storm constrain Guest VLAN AAA authentication RADIUS authentication HWTACACS SSH 2.0 Port isolation Port security EAD Dynamic ARP detection BPDU guard and root guard uRPF IP/Port/MAC binding Plaintext authentication and MD5 authentication for OSPF and RIPv2 packets Public Key Infrastructure (PKI) IP Source Guard |
|||
| IEEE | IEEE 802.3x
IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3bz IEEE 802.1p IEEE 802.1x IEEE 802.1q IEEE 802.1d IEEE 802.1w IEEE 802.1s |
|||
| Loading and upgrading | Loading and upgrading through XMODEM/FTP/TFTP
Loading and upgrading from USB |
|||
| Management and maintenance | Configuration through CLI, Telnet, and console port
SNMP v1/v2/v3 Web network management Remote Monitoring (RMON) alarm, event, and history recording IMC network management system System log, alarming based on severity, debugging information output NTP, SNTP Power, fan, and temperature alarming Ping and Tracert Virtual Cable Test (VCT) Device Link Detection Protocol (DLDP) LLDP, LLDP-MED Loopback detection |
|||
| Power saving | Automatic port power-down
Scheduled port power-down (schedule job) 802.3az Energy Efficient Ethernet (EEE) support |
|||
| EMC | FCC Part 15 Subpart B CLASS A
ICES-003 CLASS A VCCI CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254 YD/T 993 |
|||
| Safety | UL 60950-1
CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
|||
