[LS-6520X-30QC-EI-GL]

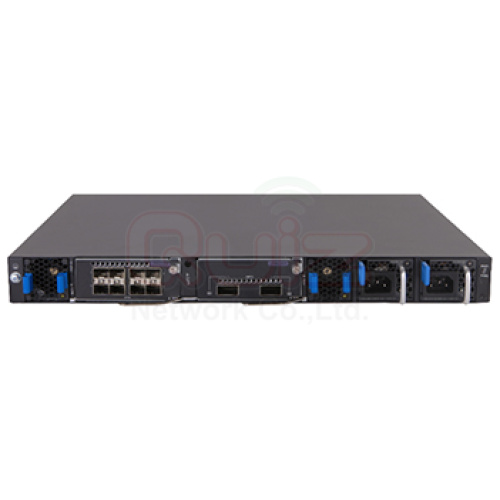

H3C LS-6520X-30QC-EI-GL Enhanced 10GE Switches ราคา Discount
ราคาพิเศษกรุณาขอผ่านทาง[email protected]
Contact
ติดต่อสอบถามเช็คสต็อค, ใบเสนอราคาและงานติดตั้งได้เบอร์ด้านล่างนี้
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
Description
ขอใบเสนอราคา ขาย H3C LS-6520X-30QC-EI-GL Enhanced 10GE Switches ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
LS-6520X-30QC-EI-GL H3C S6520X-EI 24x1G/10G BASE-X SFP+, 2x40G QSFP+, 2 x expansion slot
| Item | S6520X-30HC-EI | S6520X-30QC-EI | S6520X-54HC-EI | S6520X-54QC-EI |
| CPU | Dual Core, 1.6GHz | |||
| Box switching capacity | 2.56Tbps | |||
| Port switching capacity | 1680Gbps | 960Gbps | 2160Gbps | 1440Gbps |
| Packet forwarding rate | 705Mpps | 1050Mpps | ||
| Dimensions (H × W × D) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) | |||
| Weight | ≤ 7 kg | ≤ 7 kg | ||
| Flash/SDRAM | 1GB/2GB | |||
| Console ports | 1 (rear panel) | |||
| Management Ethernet ports | 1 RJ-45 out- of-band management port (rear panel) | |||
| USB ports | 1 (rear panel) | |||
| Service ports | 24 × 1/10GE SFP+ fiber ports | 48 × 1/10GE SFP+ fiber ports | ||
| 2 × QSFP28 fiber ports(for S6520X-30HC-EI) 2 × QSFP+ fiber ports(for S6520X-30QC-EI) | 2 × QSFP28 fiber ports(for S6520X-54HC-EI) 2 × QSFP+ fiber ports(for S6520X-54QC-EI) | |||
| Expansion slots | 2 | |||
| Stacking bandwidth | Maximum 480Gbps | |||
| Maximum stacking num | 9 | |||
| Expansion modules | 2-Port 10G SFP Plus Ethernet Optical Interface Module 8-Port 10G SFP+ with MACSec Interface Module
8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module 2-port 25GE SFP28 interface module 2-port 40GE QSFP+ interface module 8-port 25GE SFP28 interface module (for S6520X-54HC-EI) 2-port 100GE QSFP28 interface module (for S6520X-30HC-EI and S6520X-54HC-EI) |
|||
| Input voltage range | Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max.: 90 VAC to 264 VAC @ 47 Hz to 63 Hz | |||
| Fan trays | 2 hot swappable fan trays, adjustable speed, and invertible airflow | |||
| PS slots | 2 (Hot-swappable) | |||
| Idle power consumption | Single AC: 38W Dual AC: 43W | Single AC: 39W Dual AC: 44W | ||
| Max. power consumption | Single AC: 179W Dual AC: 183W | Single AC: 231W Dual AC: 234W | ||
| Operating temperature | 0ºC to 45ºC (32°F to 113°F)
-60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
|||
| Storage temperature | -40℃ to 70℃(-40℉ to 158℉) | |||
| Operating & storage humidity | 5% RH to 95% RH, non-condensing | |||
| MTBF(Year) | 63.4 | 62.8 | 60.8 | 60.2 |
| MTTR(Hour) | 1 | 1 | 1 | 1 |
| Packet Buffer | 10M | |||
| Virtualization | Intelligent Resilient Framework 2 (IRF2) Distributed device management Distributed link aggregation Distributed resilient routing
Stacking through standard Ethernet ports Local device stacking and remote device stacking LACP-, BFD-, and ARP-based multi-active detection (MAD) |
|||
| Link aggregation | 10GE/40GE/100GE port aggregation Static aggregation
Dynamic aggregation |
|||
| Jumbo frame | Supported | |||
| MAC address table | Max. 128K MAC address entries Static MAC address
Blackhole MAC address MAC learning limit |
|||
| OpenFlow | OpenFlow 1.0/1.3 | |||
| VxLAN | VXLAN L2 switching VXLAN L3 routing VXLAN VTEP
IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane OpenFlow+Netconf centralized control plane |
|||
| VLAN | Port-based VLAN (up to 4094 VLANs) Default VLAN
QinQ and flexible QinQ VLAN mapping VLAN tagging PVST+ and RPVST+ |
|||
| Traffic monitoring | sFLOW v5 | |||
| LLDP and DLDP | LLDP/LLDP-MED,DLDP | |||
| DHCP | DHCP client DHCP snooping DHCP relay DHCP server
DHCP snooping Option 82/DHCP relay Option 82 |
|||
| ARP | Max. 64K ARP
Static entry Gratuitous ARP Common proxy ARP and local proxy ARP Dynamic ARP inspection ARP anti-attack ARP source suppression ARP detection based on DHCP snooping safety entries, 802.1X entries, and IP/MAC static binding entries |
|||
| Routing | 64K IPV4 routing entries 32K IPV6 routing entries IPv4/IPv6 static routing
Loopback IP interface Dynamic routing such as RIP v1/2 and RIPng Policy routing Routes map Equal-cost multi-path routing (ECMP) VRRP OSPFv1/v2/v3 BGP IS-IS |
|||
| IPv6 | Neighbor Discovery (ND) PMTU
ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3 IPv6 Portal IPv6 tunnel |
|||
| Multicast | IGMP Snooping v2/v3
Support for IPv6 IGMP Snooping fast-leave IGMP Snooping group-policy PIM-SM and PIM-SSM PIM snooping MVRP (GVRP analog) MFF Enhanced Layer 3 multicast (Routing) |
|||
| MPLS | Support MPLS Support MCE
Support MPLS VPN, VPLS |
|||
| Zero configuration (ZTP) | DHCP auto-config CWMP-TR069 | |||
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS
Storm suppression based on BPS |
|||
| Loop-free redundant Layer 2 topology | STP/RSTP/MSTP
STP Root Guard BPDU Guard BPDU Blocking and Root Guard Link Detection (UDLD) Digital Diagnostic Monitor (DDM) G.8032 Ethernet ring protection switching (ERPS) |
|||
| QoS/ACL | Rate limit for receiving and transmitting packets
CAR |
|||
| QoS/ACL | Eight output queues per port
Flexible queue scheduling algorithms based on both port and queue, including SP, WDRR, WRR, WFQ, and SP+WRR Advanced classifier-based QoS Class of Service (CoS) Bandwidth Shaping Traffic Prioritization : 802.1p priority and DSCP priority Layer 2 to Layer 4 packet filtering and prioritization Traffic classification based on source MAC, destination MAC, source IP, destination IP, port, protocol, and VLAN Time range WRED RMON |
|||
| Mirroring | Flow mirroring N:4 port mirroring
Local port mirroring and remote port mirroring Policy-based Mirroring Traffic Mirroring |
|||
| Security | Source-port filtering
Secure FTP control Dynamic IP lockdown Dynamic ARP protection STP root guard, ACL Private VLAN protection, Hierarchical user management and password protection Role based user management MAC-based , Web-based authentication 802.1X Storm constrain AAA authentication RADIUS authentication RADIUS/HWTACACS/TACACS+ SSH2.0 Port isolation IP/Port/MAC binding IP source guard HTTPs SSL Public Key Infrastructure (PKI) CPU protection Control Plane Protection (CoPP), Wireless Intrusion Prevention System (WIPS) |
|||
| IEEE | IEEE 802.3x
IEEE 802.3ad IEEE 802.3bz IEEE 802.1p IEEE 802.1x IEEE 802.1q IEEE 802.1d IEEE 802.1w IEEE 802.1s |
|||
| Loading and upgrading | Loading and upgrading through XMODEM/FTP/TFTP Loading and upgrading from USB | |||
| Management and maintenance | Configuration from CLI
Login through Telnet, and the console port Job scheduler ISSU VCT 802.1ag and 802.3ah Simple Network Management Protocol (SNMP) IMC network management system System log Alarming based on severity NTP Power, fan, and temperature alarming Debugging information output Ping and Tracert Track Telnet-based remote maintenance |
|||
| EMC | FCC Part 15 Subpart B CLASS A ICES-003 CLASS A
VCCI CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 GB/T 9254 YD/T 993 |
|||
| Safety | UL 60950-1
CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
|||
