Description
ขอใบเสนอราคา ขาย VigorSwitch P1280 DrayTek Switches ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

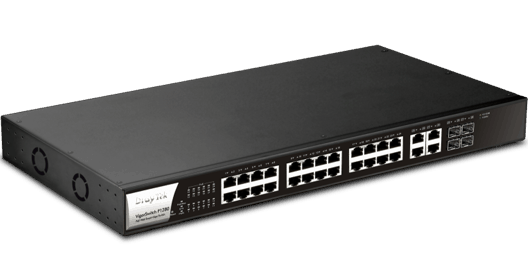

VigorSwitch P1280 24 Port-PoE GbE + 4 SFP/GbE Combo, (340W)
Interface |
|
LAN Port | 24x 10/100/1000 Mbps Gigabit Ethernet, RJ-45 4x Gigabit Ethernet/SFP Combo |
Button | 1x Factory Reset Button |
PoE |
|
PoE Capable Ports | 24 |
PoE Standards | PoE/PoE+(802.3af/802.3at), Type mode A |
PoE Power Budget | 340 watts |
Power Limit | |
Scheduled On/Off | |
Power Cycle on Port | Manual, Ping Watchdog |
Capacity |
|
Buffer Size | 4.1 Mbit |
Switching Capacity | 56 Gbps |
Forwarding Rate | 41.7 Mpps (64 bytes) |
MAC Address Table | 8k |
Jumbo Frame | Up to 9KB |
Networking Standards |
|
IP Version | IPv4, IPv6 |
Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.1q Tag-based VLAN 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class of Service 802.1d STP 802.1w RSTP 802.3ad LACP 802.1AB LLDP 802.3az EEE |
VLAN |
|
Max.Number of VLAN | 256 |
VLAN Type | 802.1q Tag-based MAC-based Management VLAN Voice VLAN Surveillance VLAN |
Port Isolation | |
ONVIF Surveillance |
|
Discovery | |
Surveillance Topology | |
Real-Time Video Streaming | |
ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
QoS |
|
Number of QoS Queues | 8 |
Queue Scheduling | SPQ, WRR |
CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
Rate Limit/Shaping | |
Security |
|
Access Control List | MAC, IPv4, IPv6 |
Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
DoS Defense | |
IP Source Guard | |
IP Conflict Detection | |
IP Conflict Prevention | |
Loop Protection | |
Link Aggregation |
|
Max. Number of Group | 8 |
Max. Number of Member in Each Group | 8 |
Type | Static, LACP |
Traffic Load Balancing | MAC Address, IP/MAC Address |
Multicast |
|
IGMP Snooping | v2, v3 (BISS) |
IGMP Querier | |
Management |
|
Web Interface | HTTP, HTTPS |
Command Line Interface | Telnet, SSH v2 |
OpenVPN Client | Certificate-based authentication |
SNMP | v1, v2c, v3 |
Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
LLDP | |
Syslog | |
2-Level Admin Privilege | |
Multiple Admin Accounts | |
Managed by VigorRouter SWM | |
Managed by VigorConnect | |
Managed by VigorACS | |
Config File Export/Import | |
SNTP (Simple Network Time Protocol) | |
Diagnostics Tools | Port Mirroring, Ping, Cable Test |
Physical |
|
19-inch Rack Mountable | Mouting Kit Included |
Max. Power Consumption | 453.3 watts |
Dimension | 441mm x 270mm x 45mm |
Weight | 4.35 kg (9.0 lb) |
Operating Temperature | 0 to 45°C |
Storage Temperature | -20 to 70°C |
Operating Humidity | 10 to 90% non-condensing |
Storage Humidity | 5 to 90% non-condensing |
