Description
ขอใบเสนอราคา ขาย Vertiv 02240456 (UI10016L) VTV-02240456 (UI10016L) ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

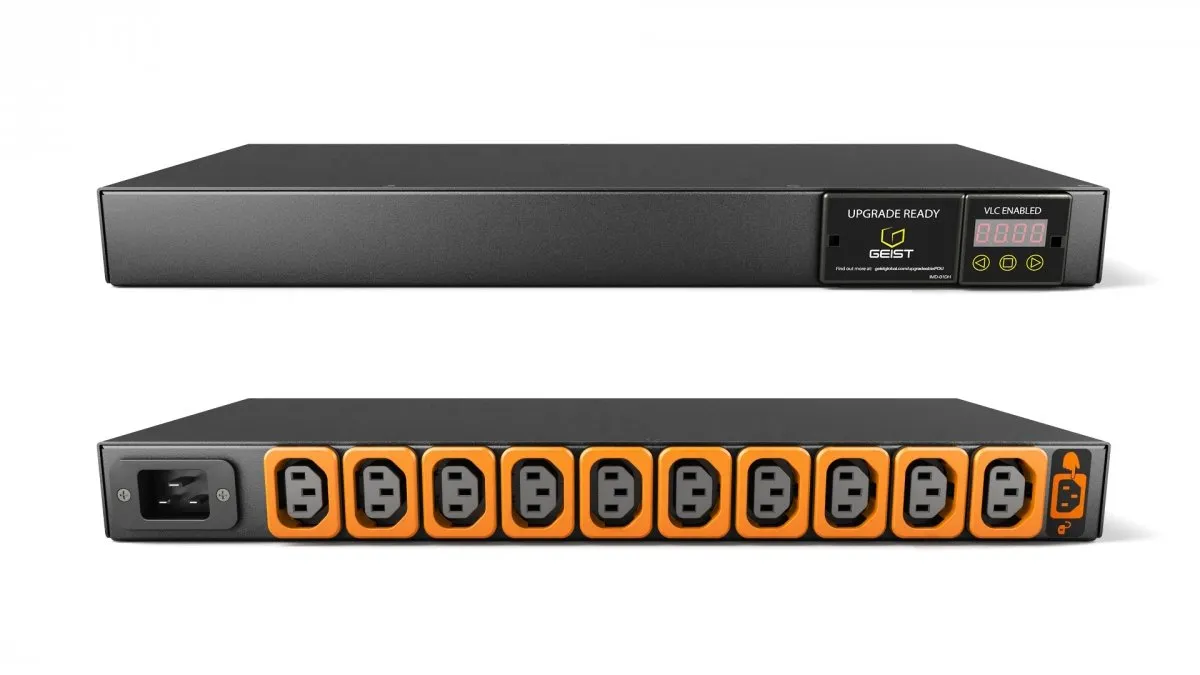

02240456 (UI10016L)Geist Rack Metered PDU: 16A Rated, C20 Input, U-Lock 10xC13 + U-Lock 0xC19, Black, 1U, Upgradeable
Design | |
---|---|
PDU types | Basic |
Mounting | Horizontal |
Product colour | Black |
Certification | – CE Marked – RoHS Compliant & China RoHS – Complies with IEC 60950-1 (CB Certificate Available) |
Rack capacity | 1U |
Ports & interfaces | |
AC outlets quantity | 10 AC outlet(s) |
Features | |
Certification | – CE Marked – RoHS Compliant & China RoHS – Complies with IEC 60950-1 (CB Certificate Available) |
Power | |
Nominal input voltage | 230 V |
Maximum current | 16 A |
Load capacity | 3700 VA |
AC input frequency | 50 Hz |
Weight & dimensions | |
Weight | 4.54 kg |
Width | 44 mm |
Depth | 432 mm |
Height | 216 mm |
Operational conditions | |
Operating temperature (T-T) | 0 – 60 °C |
Storage relative humidity (H-H) | 5 – 95% |
Operating relative humidity (H-H) | 5 – 95% |
Operating altitude | 0 – 3050 m |
Technical details | |
Sustainability certificates | RoHS |
Product Specification and Options
System Features
Monitoring | Input current monitoring. Local high visibility LED display. Input power monitoring available via VLC feature using the Vertiv rPDU Scanner app. |
Monitoring Level 1 | Phase (A) Monitoring (kWh, W, VA, PF, V, A)
Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements |
VLC Support | Yes |
Quantity Of Inputs | 1 |
Voltage | 100-240V |
Current | 16A or 20A |
VA per Input (Load Capacity) | 1.9kW (120V), 3.3kW (208V), 3.6kW (230V) |
Frequency | 50/60Hz |
Over Current Protection | None |
Switch | No |
Scrolling / Rotatable Digital Display | Yes |
Power Entry Location | Left Rear |
Plug Type | IEC60320 C20 Power Inlet (cord sold separately) |
Receptacle/Socket Type #1 | U-Lock IEC C13 |
– Quantity on Rear | 10 |
– U-Lock Color ID | 1 Circuit = Orange |
– Style | Individual |
– Voltage per Receptacle/Socket | 100-120V or 208-240V |
Internal RMS Voltage Sensor | Yes |
Internal RMS Current Sensor | Yes |
Maximum Operating Temperature | 60C / 140F |
Heavy Steel – Powder Coat Finish | Black |
Configuration | 1U |
Adjustable Mount Brackets | Yes |
Product Warranty | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
Certification/Agency Approvals | CE Marked |
Certification/Agency Approvals | Complies with EN 55032 and EN 55035 |
Certification/Agency Approvals | FCC Part 15 Class A Conformance |
Certification/Agency Approvals | RoHS Compliant |
Certification/Agency Approvals | RCM Mark (EMC Only) |
Certification/Agency Approvals | Complies with IEC 62368-1 (DOC Available) |
Certification/Agency Approvals | UL & c-UL Listed 62368-1 |
Certification/Agency Approvals | China RoHS |
Certification/Agency Approvals | Cم Mark |
Warranty
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 5 ปีเต็ม
