Description
ขอใบเสนอราคา ขาย IP-COM AP625 11AC, 433Mbps, 1 GE LAN, 30 Degree, PoE 802.3af/at, PTP/PTMP/ 6KV Lightning Protection, IP64, PoE Injector Included ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
AP62511AC, 433Mbps, 1 GE LAN, 30 Degree, PoE 802.3af/at, PTP/PTMP/ 6KV Lightning Protection, IP64, PoE Injector Included
Overview |

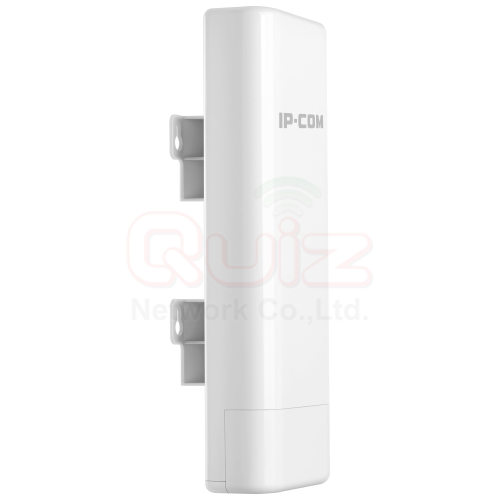

IP-COM AP625 Wireless CPE Outdoor Point to Point AC ความเร็วสูงสุด 433Mbps, เสาอากาศแบบทิศทาง 16dBi สำหรับเชื่อมต่อเครือข่ายระยะไกล Point To Point ได้ระยะทาง 5-10Km พร้อม Passive POE เดินสาย Lan ได้ระยะถึง 60 เมตร |
Hardware Features |
|
---|---|
Dimensions |
270*94.86*67.5mm |
Frequency Range |
5GHz |
Maximum wireless speed |
433Mbps |
CPU Processor |
Broadcom 900MHz |
GND Terminal |
1 |
Interface |
1*GE PoE/WAN/LAN port |
Mode Switch |
STA: The device only work in Station mode |
Button |
Reset: Press 15 seconds or more to restore to default settings |
Antennas |
16dbi Directional Antenna |
Antenna Beamwidth |
Horizontal: 30° |
Maximum Power Consumption |
9W |
Lightning Protection |
6KV |
Waterproof Level |
IP64 |
LED indicator |
LAN,LED1,LED2,LED3 |
Power Supply |
24v 0.5A PoE Injector |
Software Features |
|
Operating mode |
AP/Station/Universal Repeater/WISP/Router |
Compliant Standards |
IEEE 802.11ac/n/a |
Wireless Features |
Enable/Disable Wireless Radio |
Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
Transmission Power |
Adjustable power by 1dBm |
Receiver sensitivity |
MCS0: -90dbm |
DHCP Server |
DHCP Server |
VPN Pass-Through |
PPTP,L2TP |
Remote Web access |
Support |
Schedule Reboot |
Support |
Page Timeout |
Support |
Ping Watchdog |
Support |
Speed Test |
Support |
Dyndns |
noip, dyndns.org |
Network Diagnoses |
Ping, Traceroute, Signal Scan |
Management Tool |
Time&Date Setting |
Managed By Controller |
PC Software — CPE Controller |
Others |
|
Package Contents |
5G 433Mbps outdoor Point to Point CPE AP625 |
Operating Temperature |
-20℃ ~ 55℃ |
Storage Temperature |
-40℃ ~ 70℃ |
Operating Humidity |
10%~90% non-condensing |
Storage Humidity |
10%~90% non-condensing |
Default login IP |
192.168.2.1 |
Default Login Username |
admin |
Default Login Password |
admin |
Certifications |
FCC/CE/RoHS |
