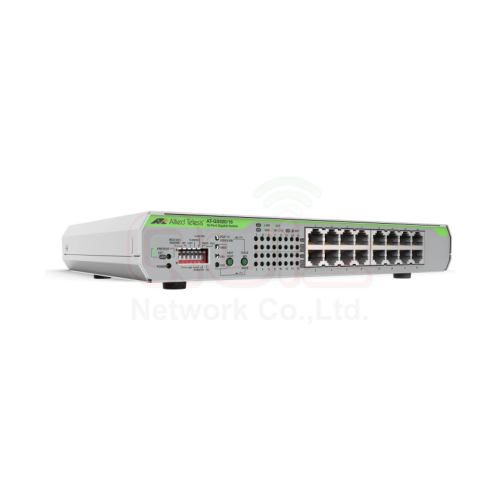

AT-GS920/16-40 16 port 10/100/1000T unmanaged switch with internal PSU, Configurable with DIP Switch, AU Power Cord. PSU Internal Rack Rackmountable 19″ SoftwareSupport –
Product | Width x Depth x Height | Weight | Switching Capacity | MAC Address | Power Current | Max Power Consumption |
---|---|---|---|---|---|---|
GS920/8 | 210 x 121 x 38 mm (8.27 x 4.76 x 1.50 in) |
0.8 kg (1.76 lb) | 16Gbps | 4K | 0.2A | 4.5W |
GS920/8PS | 210 x 275 x 42.5 mm (8.27 x 10.83 x 1.67 in) |
1.6 kg (3.53 lb) | 16Gbps | 4K | 1.7A | See table below |
GS920/16 | 263 x 179 x 38 mm (10.35 x7.05 x 1.50 in) |
1.5 kg (3.31 lb) | 32Gbps | 8K | 0.3A | 12W |
GS920/24 | 341 x 210 x 44 mm (13.43 x 8.27 x 1.73 in) |
2.1 kg (4.63 lb) | 48Gbps | 8K | 0.4A | 18W |
Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | Full PoE+ Load Max Power Consumption | Full PoE+ Load Max Heat Dissipation | Max PoE Power | 7.5W Max PoE Sourcing Ports | 15W Max PoE Sourcing Ports | 30W PoE+ Max PoE Sourcing Ports |
---|---|---|---|---|---|---|---|---|
GS920/8PS | 5.4W | 8 BTU/h | 74W | 254 BTU/h | 62W | 8 | 4 | 2 |
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 5 ปีเต็ม
