C1121-4P ISR 1100 4P Dual GE SFP Routers Discount
฿ 27,820.00Non-Vat ฿ 29,767.40Vat 7%
Contact
ติดต่อสอบถามเช็คสต็อค, ใบเสนอราคาและงานติดตั้งได้เบอร์ด้านล่างนี้
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
Description

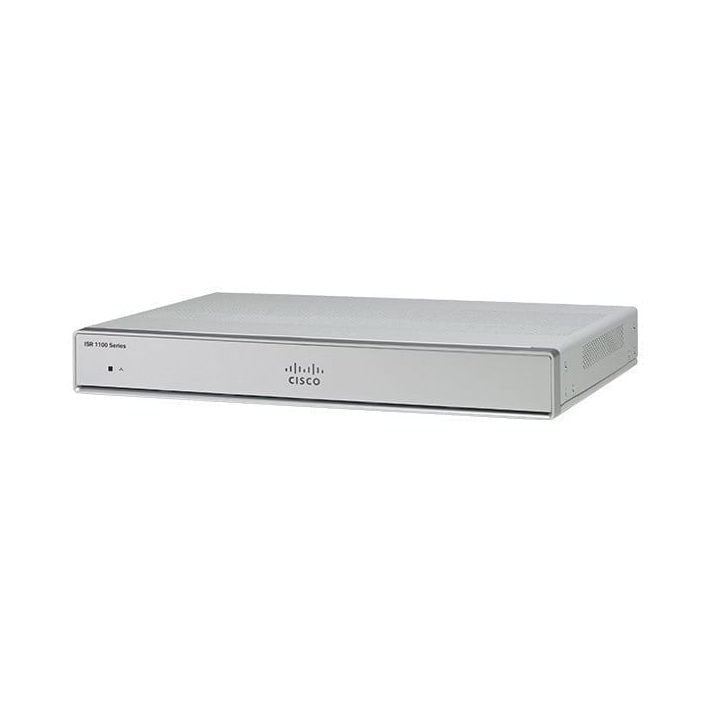

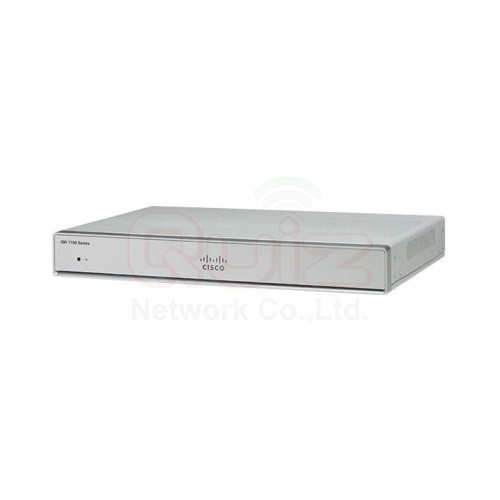

C1121-4P ISR 1100 4P Dual GE SFP Router
ขอใบเสนอราคา ขาย C1121-4P ISR 1100 4P Dual GE SFP Routers Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
ISR 1100 Series provides these features:
•Lightweight, compact size with low power consumption
•High performance to run concurrent services
•High availability and business continuity
•Consistent, high application performance levels
•Risk mitigation with multilevel security
•Unified control of wired and wireless networks from a common console for streamlined operations
•Remote configuration and management to keep local IT staff lean
•Performance
-Throughput
-Service reliability
•Lower WAN expenditures
•Pay as you grow: IPsec performance upgrade model
•IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
•Business continuity and increased resiliency
Architectural highlights：
•Multicore processors
•Embedded IPsec VPN hardware acceleration
•Integrated Gigabit Ethernet ports
•USB-based console access
•Optional PoE upgrade
•Flash memory support
•DRAM
Table 2 shows the business benefits.
| Business need | Features/description |
| Lightweight, compact size with low power consumption | •Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors (Including Cisco Pluggable smaller form factor technology). |
| High performance to run concurrent services | •High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. C1160 models will have better overall performance. |
| High availability and business continuity | •Redundant WAN connections for failover protection and load balancing.
•Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
| Consistent, high application performance levels | •The router can run multiple services simultaneously with minimal performance degradation. |
| Risk mitigation with multilevel security | •Network perimeter security with integrated application inspection firewall.
•Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. •High-performance VPNs: DMVPN, FlexVPN, GETVPN. •Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility. •Cisco Umbrella ™ is a cloud security platform that provides the first line of defense against threats on the internet wherever users go. •Security hardware acceleration. •Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. |
| Unified control of wired and wireless networks from a common console for streamlined operations | •Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
•Supports Mobility Express for WLAN-enabled routers. |
| Remote configuration and management to keep local IT staff lean | •Supports separate console and USB ports. Can be configured to work with optional USB token.
•Supports TR-069. |
| Performance
•Throughput •Service reliability |
•ISR 1100 can provide encrypted traffic performance greater than 350 Mbps.
•A distributed multicore architecture with the dedicated control plane and service plane. •Remote installation of application-aware services that run identically to their counterparts in dedicated appliances (Future roadmap). |
| Lower WAN expenditures | •Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
•Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility. |
| Pay as you grow: IPsec performance upgrade model | •Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings and CapEx budget management. |
| IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | •Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
| Business continuity and increased resiliency | •The entire 1000 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints (Not available on C1101 and C1109 smaller form factor series). |
Table 3 shows the licenses for C1100 4P Series.
| Licenses | Description |
| SL-1100-4P-APP | AppX License for Cisco ISR 1100 4P Series |
| C1-SL-1100-4P-APP | AppX Foundation License for Cisco ISR 1100 4P Series |
| SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
| C1-SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
| SL-1100-4P-SECNPE | NPE Security License for Cisco ISR 1100 4P Series |
Small Form-Factor Pluggable Supported
Table 4 shows the SFP for Cisco 1100 Series Routers.
| Small Form-Factor Pluggable | ISR 1100 8P | ISR 1100 4P | Description |
| GLC-EX-SMD | Yes | Yes | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. |
| GLC-LH-SMD | Yes | Yes | GE SFP, LC connector LX/LH transceiver; with DOM. |
| GLC-SX-MMD | Yes | Yes | GE SFP, LC connector SX transceiver; with DOM. |
| GLC-ZX-SMD | Yes | Yes | 1000BASE-ZX SFP; with DOM. |
| GLC-FE-100ZX | Yes | Yes | 100BASE-ZX SFP (80km). |
| GLC-BX-D | Yes | Yes | 1000BASE-BX SFP, 1490NM. |
| GLC-BX-U | Yes | Yes | 1000BASE-BX SFP, 1310NM. |
Compare to Similar Items
Table 5 shows the comparison of ISR 1100 Series.
| Model | Product Description |
| C1121-4P | ISR 1100 4P Dual GE SFP Router |
| C1121-4PLTEP | ISR 1100 4P Dual GE SFP Router Pluggable SMS/GPS |
| C1121-8PLTEP | ISR 1100 8P Dual GE SFP Router Pluggable SMS/GPS |
Warranty
Warranty / เงื่อนไขการรับประกัน: ติดต่อสอบถามเพิ่มเติม
