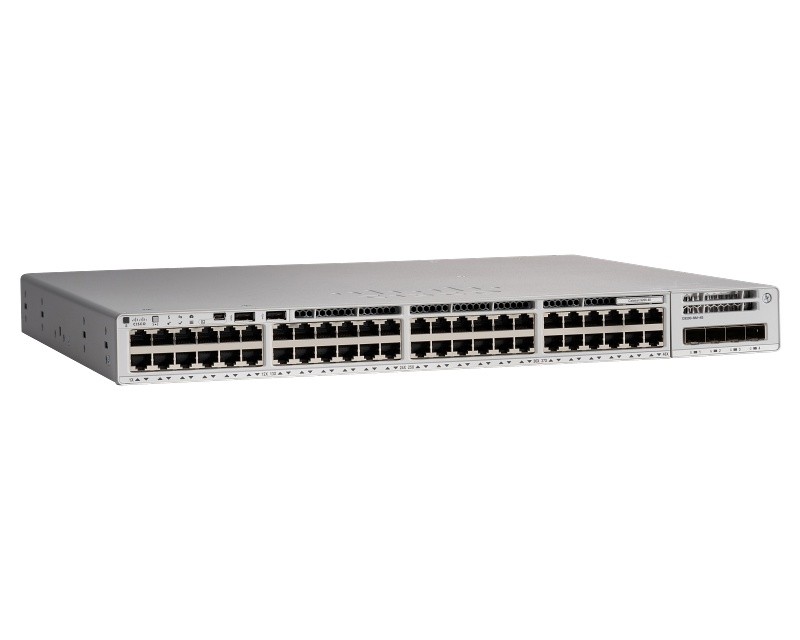

C9200L-48PXG-2Y-A C9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Advantage

ขอใบเสนอราคา ขาย C9200L-48PXG-2Y-A C9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Advantage Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้

specification

Table 1 shows the quick spec.

Model	C9200L-48PXG-2Y-A
Downlinks total 10/100/1000 or PoE+ copper ports	48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G)
Uplink configuration	2x 25G fixed uplinks
Default primary AC power supply	PWR-C5-1KWAC
Fans	Fixed redundant
Software	Network Advantage
Stacking bandwidth	80 Gbps
DRAM	2 GB
Flash	4 GB
Switching capacity	340 Gbps
Forwarding rate	252.97 Mpps
Chassis Dimensions	1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm

Product Details

Catalyst 9200 series provides these highlights:

●   Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

●   Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

●   Flexible downlink options with data or PoE+

●   Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps

●   UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

●   Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

●   Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

●   Advanced network monitoring using Full Flexible NetFlow

●   Cisco Software-Defined Access (SD-Access):

◦     Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)

◦     Network assurance and improved resolution time through Cisco DNA Center™

●   Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

●   Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry

●   ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Supported Products

Table 2 shows the recommended supported products.

StackWise-80 and StackWise-160 Kit and cables
Product number	Product description
C9200L-STACK-KIT=	C9200L Stack Kit Spare
STACK-T4-50CM	50CM Type 3 Stacking Cable
STACK-T4-1M	1M Type 3 Stacking Cable
STACK-T4-3M	3M Type 3 Stacking Cable
Soft Licenses
Product number	Product description
C9200L-DNA-P-48	C9200L DNA Premier Term, 48-Port: Includes Term Licenses for DNA Advantage, 25 ISE Base & 25 ISE Plus Endpoints, 25 Stealthwatch Flows (including Virtual Flow Collector & Management Console). Requires separate purchase of ISE appliance/ISE VM and DNA Center appliance
C9200L-DNA-P-48-3Y	C9200L DNA Premier, 48-port, 3Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
C9200L-DNA-P-48 -5Y	C9200L DNA Premier, 48-port, 5Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
C9200L-DNA-P-48 -7Y	C9200L DNA Premier, 48-port, 7Y Term – DNA, 25 ISE PLS and ISE BASE, 25 SWATCH
Power supplies
Product Number	Product Description
PWR-C5-1KWAC/2=	1000WAC power supply spare

Compare to Similar Items

Table 3 shows the comparison.

Model	Downlinks	Uplinks	Power Supply	Fans
C9200L-24PXG-4X-A	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)	4x 10G fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-48PXG-4X-A	48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G)	4x 10G fixed uplinks	PWR-C5-1KWAC	Fixed redundant
C9200L-24PXG-2Y-A	24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)	2x 25G fixed uplinks	PWR-C5-600WAC	Fixed redundant
C9200L-48PXG-2Y-A	48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G)	2x 25G fixed uplinks	PWR-C5-1KWAC	Fixed redundant
