Description

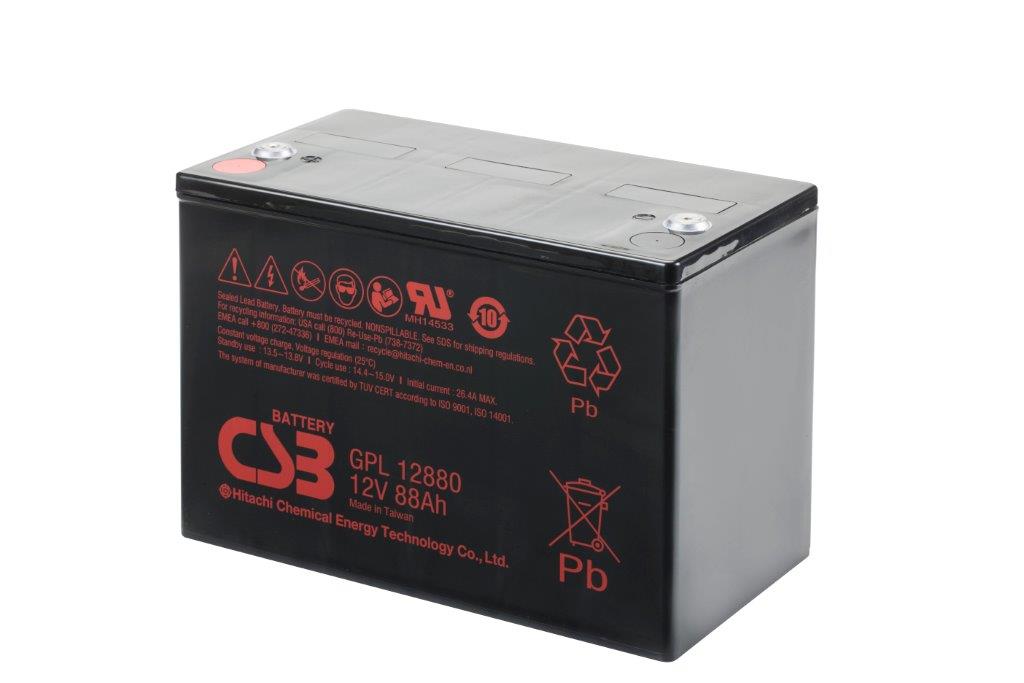

ขอใบเสนอราคา ขาย CSB-GPL12880 Model GPL12880 12V 94AH ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
CSB-GPL12880Model GPL12880 Description 12V 94AH ใช้กับ Model –
Cells Per Unit | 6 |
Voltage Per Unit | 12 V |
Capacity | 88Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F) |
Weight | Approx. 29.7kg. (65.46 lbs.) |
Maximum Discharge current | 800A (5 sec.) |
Internal Resistance | Approx. 3.6 mΩ |
Operating Temperature Range | Discharge:-15℃~50℃(5°F~122°F) Charge:-15℃~40℃(5°F~104°F) Storage:-15℃~40℃(5°F~104°F) |
Nominal Operating Temperature Range | 25°C ± 3°C (77°F ± 5°F) |
Float charging voltage | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
Recommended Maximum Charging current limit | 26.4A |
Equalization and Cycle Service | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
Self Discharge | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
Terminal | I2-Thread lead alloy recessed terminal to accept M6 bolt |
Container Material | Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
