Description

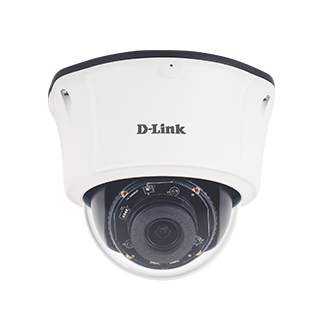

4 MP Full HD IR Outdoor Fixed Dome IP Camera
(Outdoor IP66 3 6mm Full HD 1080p IR 15m H 265 WDR>=120dB Corridor Mode for Narrow Passages Smart defog Built-in Mic Audio In/Out Alarm In/Out Micro-SD up to 128GB PoE BNC Output)
- 4MP Full HD Camera
- 2592 X 1520 @30fps
- IR Range up to 15m
- Outdoor application – IP66
- Corridor mode
- Smart de-fog
- Region of Interest
- SD/SDHC/SDXC Slot, max 128GB
- Alarm Port
- IK-10
Camera Hardware Profile | • 1 /3″ 4 MP Progressive Scan CMOS sensor • Focal Length: 3.6mm • Up to 15 meter IR illumination distance • Aperture : F2.2 • Built-in Infrared-Cut Removable (ICR) Filter module, Smart IR support • Minimum illumination: Color 0.05Lux; IR ON 0 Lux • Angle of view: (H) 90 (V) 46 • Shutter Speed: 1/5-1/20000 • Minimum object distance : 0.3m • Digital zoom : 10x |
Camera Housing | • IP66 compliant weatherproof housing |
Image Features | • Configurable image size, quality, frame rate, VBR/CBR (500kbps ~ 12 Mbps) • Configurable privacy mask zones : Total zones 4 • Time stamp and text overlays • Customized text overlay • Digital Noise reduction with 2D and 3D technology • No. of zones configurable for ROI : 8 • Configurable Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance, Rotate mode, Corridor mode • Image Enhancement with WDR, HLC, BLC |
Video Compression | • Simultaneous H.264/H.265/MJPEG format compression • H.264 /H.265multicast streaming • JPEG for still images |
Video Resolution | • Main Stream : 2592×1520 / 2560×1440 / 2304×1296 /1920×1080 • Second Stream : D1 to QVGA |
Frame Rate | • Selectable upto 30 FPS |
Vandal Proof (IK-10) | Yes |
External Device Interfaces | • 10/100 BASET- X Ethernet port with PoE • BNC Output • Built-in Microphone • Micro SD/ SDHC/ SDXC Slot, max 128GB • 1ch Audio in & 1ch Audio out • 1ch Alarm in & 1ch Alarm out |
Network | |
Network Protocols | • IPv6 • SMTP client • IPv4 • HTTP/HTTPS • TCP/IP • PPPoE • UDP • UPnP • ICMP • RTP/RTSP • DHCP client • Multicast • NTP client • ONVIF compliant • DNS client • DDNS compliant |
Security | • Administrator and user group protection • HTTP and RTSP authentication • Remote client access control • HTTPS encryption for web access hardware watchdog |
System Management | |
System Requirements for Web Interface | • IE 11, Chrome, Firefox |
Event Management | • Motion detection, Video Loss, Port Alarm • Alerts to SMTP client • Event notification and uploading of snapshots via e-mail • Multiple event notifications only on mails |
Remote Management | • Configuration interface accessible via web browser • Take snapshots |
OS and Mobile Support | • Windows 7/8/XP/Vista/2000 and higher • Android |
DCMS System Requirement | • Operating System: 32 Bits – MSWindows XP pro SP3/Visa SPI/Win 7 SPI/Win 10 64 bits – Win 7 SPI/Win Server 2008 R2 |
DCMS Software Function | • Control and manage up to 64 channels |
General | |
Weight | • 700g |
Power | • DC 12V /PoE (802.3af) |
Power Consumption | • 5W (IR LED OFF)7; W (IR LED ON) |
Temperature | • Operating: -30°C ~ 60°C |
Humidity | • Operating: 0% ~ 90% RH |
Certification | • CE & FCC |
Dimension | • 120.6X 96.28 mm |
Order Information | |
Part Number | Description |
DCS-F4614 | 4MP Day & Night Outdoor Fixed Dome Network Camera |
