Description

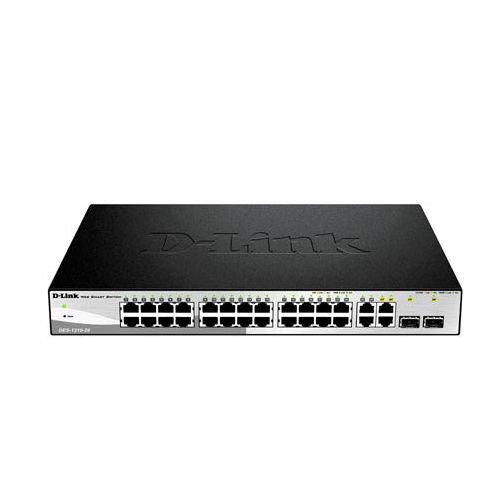

DGS-1210-28 24-port UTP SFP Combo Discount 24-port UTP 10/100/1000Mbps 4-port UTP 10/100/1000Mbps / SFP Combo
Port Standards & Functions | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) |
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) | |
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) | |
IEEE 802.3az compliance | |
Auto-negotiation | |
IEEE 802.3x Flow Control | |
Number of Ports | 24 Ports 10/100/1000 Mbps |
4 SFP | |
Network Cables | UTP Cat.5, Cat.5e (100m max) |
EIA/TIA-568 100-ohm STP (100m max) | |
Full/Half Duplex | Full/half duplex for 10/100Mbps speeds |
Full duplex for Gigabit speed | |
Media Interface Exchange | Auto MDI/MDIX adjustment for all twisted-pair ports |
Performance | |
Switching Capacity | 56 Gbps |
Transmission Method | Store-and-forward |
MAC Address Table | 16,000 entries per device |
MAC Address Update | Up to 256 static MAC entries |
Enable/disable auto-learning of MAC addresses | |
Maximum 64 bytes packet forwarding rate | 41.7 Mpps |
Packet Buffer Memory | 1.5 MB |
AC Input | 100 to 240 VAC 50/60Hz internal universal power supply |
Maximum Power Consumption | 22.45W |
Standby Power Consumption | 17.4.4W/240V |
Fan Quantity | 0 |
Acoustics | 0 dB(A) |
Heat Dissipation | 76.55 BTU/hr |
Operating Temperature | 23° to 122°F (-5° to 50°C) |
Storage Temperature | -4° to 158°F (-20° to 70°C) |
Operating Humidity | 0% to 95% non-condensing |
Storage Humidity | 0% to 95% non-condensing |
Dimensions | 440 mm x 140 mm x 44 mm(17.32 x 5.51 x 1.73 inches) |
Weight | 3.68 lbs (1.67 kg) |
MTBF | 540,000 hours |
Certifications | FCC Class A |
CE Class A | |
ICES-003 | |
VCCI Class A | |
C-Tick | |
BSMI | |
Safety | cUL |
CE LVD |
