Description

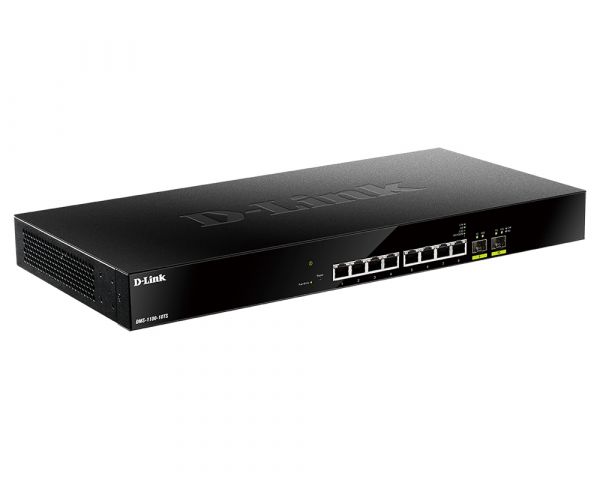

8-port 2 5GBASE-T 2-port 10G SFP+
Interfaces
• 8 100/1000/2.5GBASE-T ports
• 2 SFP+ ports
Port Standard & Functions
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 802.3bz 2.5GBase-T
• IEEE 802.3ae 10G over fiber
• IEEE 802.3az
Diagnostic LEDs
• Power
• Link/Activity (Per port)
• FAN error
Network Cables for 2.5GBase-T
• Cat 5e (100 m max)
Media Interface Exchange
• Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity
• 80 Gbps
Maximum Packet Forwarding Rate
• 59.52 Mpps
Transmission Method
• Store-and-forward
MAC Address Table
• 16K entries per device
Packet Buffer
• 1.5 Mbytes
Jumbo Frame
• 9 Kbytes
Software
L2 Features
• Flow control
• 802.3x Flow control
• HOL Blocking Prevention
• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Supports 192 groups (shared with MLD Snooping)
• IGMP Snooping Querier
• IGMP Snooping Fast Leave
• MLD Snooping
• MLD snooping v1/v2
• Supports 192 groups (shared with IGMP Snooping)
• MLD Snooping Querier
• MLD Snooping Fast Leave
• 802.3ad Link Aggregation:
• Support 8 groups per device and 8 ports per group
• Loopback Detection V4.07
• LLDP/LLDP-MED
• Port Mirroring
• One-to-One
• Many-to-One
• Mirror based on Tx
• Mirror based on Rx
• Statistics
• Tx Ok
• Tx Error
• Rx Ok
• Rx Error
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• Ethernet Ring Protection Switching
• G.8032 ERPS single ring
• 16 max nodes per ring
VLAN
• 802.1Q tagged VLAN
• Port-based VLAN
• Auto Surveillance VLAN 2.0*
• Voice VLAN
• Asymmetric VLAN
• VLAN Group
• Supports 4094 static VLAN groups
• Max. 4094 VIDs
Quality of Service (QoS)
• 802.1p Quality of Service
• 8 queues per port
• Strict Priority Queue (SPQ)
• Weighted Round Robin (WRR)
• Port-based bandwidth control (rate limiting)
• Port-based bandwidth control
• Ingress bandwidth control
• Egress bandwidth control
Security
• D-Link Safeguard Engine
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS attack prevention
• SSLv3/TLS 1.2
• IPv4 support
• IPv6 support
OAM
• Cable diagnostics
• Factory reset
AAA
• Trusted Host
Management
• Web-based GUI (supports IPv4/IPv6)
• Smart Wizard
• Client-based D-Link Network Assistant (DNA)
• SNTP
• SNMP
• Supports v1/v2c
• SNMP trap
• System log
• DHCP/BootP client
• TFTP client
• D-Link Discovery Protocol (DDP)
• Dual images
• Dual configurations
• Ping
Green Technology
• Power saving features
• LED shutoff
• Link status
• Port shutoff
• System hibernation
MIB/RFC Standards
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• RFC1213 MIB II
• RFC1493 Bridage MIB
• RFC1907 SNMPv2 MIB
• RFC4363 IEEE 802.1p MIB
• ZoneDefense MIB
• Private MIB
Physical Parameters
Power Input
• 100 to 240 V AC
Maximum Power Consumption
• 33.7 W
Standby Power Consumption
• 21.6 W
Heat Dissipation
• 114.96 BTU/h
MTBF
• 378,023 hours
Weight
• 2.53 kg
Dimensions
• 440 x 210 x 44 mm
Temperature
• Operating: -5 to 50 °C
• Storage: -40 to 70 °C
Humidity
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing
EMI
• CE
• FCC
• C-Tick
• VCCI
• BSMI
• CCC
Safety
• cUL
• CB
• CE
• CCC
• BSMI
* This feature will be supported in a future firmware release.
Order info
DMS-1100-10TS Switch with 8 2.5GBASE-T ports and 2 10G SFP+ ports
