Description

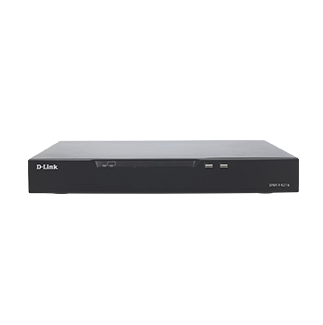

16CH 2-Bays NVR
– 2 SATAs (each HDD max up to 6TB)
– 2 x 10/100/1000Mbps LAN
– Video Compression H 264 High Profile
– Supports VGA HDMI 1080P Output
– 1 x HDMI 1 x VGA 2 x USB
– 1CH mic in 1CH audio line out
DC12V 1U Casing
D-Link’s Professional Network Video Recorder (NVR) offers a comprehensive video display,storage*, and management solution. These NVR provides reliable high quality remote monitoring functionality that is much more cost-effective than conventional surveillance systems.
- HDMI/VGA Output 920X1080/60Hz
- Audio I/O & Alarm I/O
- H.264/MPEG Camera Input
- Live 16 CH with 4Playback Channel
General | |||
Standards | • IEEE 802.3/u/z • SATA II, III |
||
Two Reset Modes | • ResetWeb GUI • Reset from local display GUI |
||
Performance | |||
I/O Ports | •RJ-45 port • DC-in jack •One HDMI supporting resolution – 1920×1080/60Hz,1280×720/60Hz,1024×768/60Hz • 2 x 2.0 USB Host • Audio input x 1, output x 1 • OneVGA supporting resolution – 1920×1080/60Hz,1280×720/60Hz,1024×768/60Hz |
||
OS | • Linux | ||
Supported Cameras | • Supports Onvif network cameras | ||
System Requirements for Web Interface | • Browser: Internet Explorer, Firefox | ||
DNR-F4108 | DNR-F4216 | DNR-F4432 | |
Flash ROM | • 128MB | • 128MB | • 128MB |
RAM | • 512MB DDR III | • 1024 MB DDR III | • 1024 MB DDR III |
Storage Capacity | • 4 TB | • 8 TB | • 16 TB |
No of bays | • 1 | • 2 | • 4 |
Alarm I/O | • N/A | • 2CH Alarm input,2CH Alarm output | • 1CH Alarm output,1CH Alarm input |
Audio I/O | • 1CH MIC input,1CH MIC output | • 1CH MIC input,1CH MIC output | • 1CH MIC output,1CH MIC input |
RJ45 | • 1 RJ45 10/100M | • 2 RJ45 10/100/1000M | • 2 RJ45 10/100/1000M |
Power Supply | • DC 12V ,Max Input 24W | • DC 12V ,Max Input 36W | • AC110/220V,47-63Hz ,Max input 200W |
Power Consumption | • Max 10W (without HDD, USB) | • 10W (without HDD, USB) | • Max 15W (without HDD, USB) |
Operating Temperature | • 0°C~ +45°C | • -10 ºC ~ +45 ºC | • -10°C~ +45°C |
Operating Humidity | • 0% – 90% RH | • 0% ~ 90% RH | • 0% – 90% RH |
Chassis | • Smart 1U | • Mini 1U | • 2U |
Product Dimensions | • 255x235x47.5mm | • 372x311x44.5mm | • 440x435x89.8mm |
Product Weight | • <870g | • <4.5Kg | • 6.8kg |
Recording Performance | • Resolution- 6MP/5MP/4MP/3MP/ 1080P/720P/D1/VGA/CIF/QCIF • Throughput – 80Mbps (main stream 64Mbps ,sub stream 16Mbps) |
• Resolution – 6MP/5MP/4MP/3MP/ 1080P/960P/720P/D1/VGA/CIF/QCIF • Throughput – 160Mbps, (main stream 128Mbps, sub stream 32Mbps) |
• Resolution -6MP/5MP/4MP/3MP/ 1080P/960P/720P/D1/VGA/CIF/QCIF • Throughput – 192Mbps, (main stream 144Mbps, sub stream 48Mbps) |
Software | |||
Audio and Video Recording | • Synchronized audio & video recording | ||
Compression Format | • H.264 | ||
Video Setting | • Resolution, quality, frame rate, enable audio | ||
Recording Type | • Record by schedule, manual, and event-based recording | ||
Live View | • HDMI andVGA • Supported via browser |
||
Live View Control | •Live view, preset/go, patrol, focus, PTZ functions, snapshot, full screen, digital zoom | ||
Playback | • Supported via browser and HDMI/VGA | ||
Playback Control | • Playback with normal, fast forward/rewind and step forward/rewind • Digital zoom |
||
Overwrite Recording | • Auto recycling when disk storage is full | ||
File Export | • Raw format | ||
User Account | • Additional accounts can be created to allow users system access | ||
DDNS | • DDNS client support | ||
System Time | •Set the system time (NTP input time, sync with computer, Daylight Saving Time) | ||
Network Service Protocols | • IPV4,ARP, TCP, UDP, ICMP • DHCP Client • NTP Client • DNS Client • DDNS Client • SMTP Client • PPPoE • HTTP & HTTPS • IP filtering • UPnP • SNMP • Multicast • SMTP |
||
User Interface | • HTTPWeb browser • HDMI/VGA Local Display • Multiple Language GUI |
||
Event Managemet | • Events – Motion Detection, Video loss, Disk space full • Alert – Email |
||
DCMS System Requirement | • Operating System: 32 Bits – MSWindows XP pro SP3/Visa SPI/Win 7 SPI/Win10 64 bits – Win 7 SPI/Win Server 2008 R2 |
||
DCMS Software Function | • Control and manage up to 64 channels | ||
On Screen Display | • Configurable channel number, text position, date and time | ||
Certifications | • CE • FCC |
