Description
ขอใบเสนอราคา ขาย Tp-Link EAP783 Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

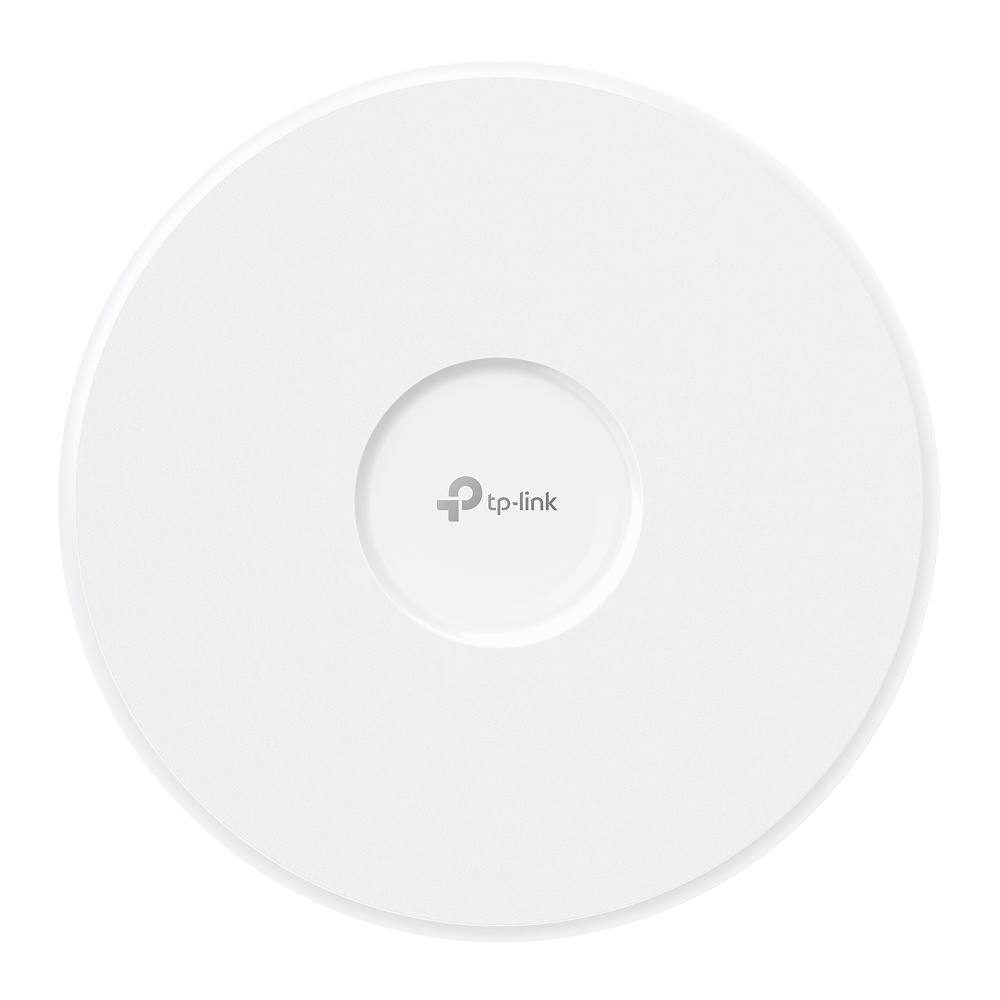

EAP783Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
PORT: 2×10G RJ45 Port
SPEED:1376Mbps at 2.4 GHz + 8640 Mbps at 5 GHz+ 11520 Mbps at 6 GHz
FEATURE: 802.3bt POE++ and 12V DC (Power Adapter is not included), 8×Internal Antennas, MU-MIMO, 320MHz Supported, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, MLO, 4K-QAM, Centralized Management by Omada SDN Controller, Omada App
EAP783
BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE22000 Tri-Band Wi-Fi 7: 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz). Buffering will no longer be a problem.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 2× 10G Port: Unlock the full potential of Wi-Fi 7.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
- Advanced Functions:Supports centralized management, mesh, and seamless roaming.
GENERAL | |
---|---|
Weight | Net Weight:1384.6g |
HARDWARE FEATURES | |
---|---|
Interface | 2× 10G Ethernet Port |
Button | Reset |
Power Supply | 802.3bt PoE++ or 12V DC |
Power Consumption | 39W |
Dimensions ( W x D x H ) | 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) |
Antenna Type | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5.5 dBi • 6 GHz: 4× 5 dBi |
Mounting | Ceiling / Wall Mounting (Kits Included) |
WIRELESS FEATURES | |
---|---|
Coverage | 200㎡ (2150 ft²) § |
Concurrent Clients | 640** |
Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
Signal Rate | • 6 GHz: Up to 11520 Mbps • 5 GHz: Up to 8640 Mbps • 2.4 GHz: Up to 1376 Mbps |
Wireless Functions | • MLO • 4K-QAM • MU-MIMO • HE320 • Mesh • Automatic Channel Selection and Power Adjustment • BBS Coloring • OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS • Wireless Schedule • Reboot Schedule |
Wireless Security | • PPSK • Captive Portal Authentication • WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise |
Transmission Power | • FCC: <28 dBm (2.4 GHz) <28 dBm (5 GHz) <24 dBm (5 GHz) <28 dBm (6 GHz) |
MANAGEMENT | |
---|---|
Omada App | Yes |
Restore & Backup | Yes |
Firmware update via Web | Yes |
NTP | Yes |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
SSH | Yes |
Web-based Management | Yes |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS, IC |
Package Contents | • EAP783 • Installation Guide • Ceiling/Wall Mounting Kits |
Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
