Description

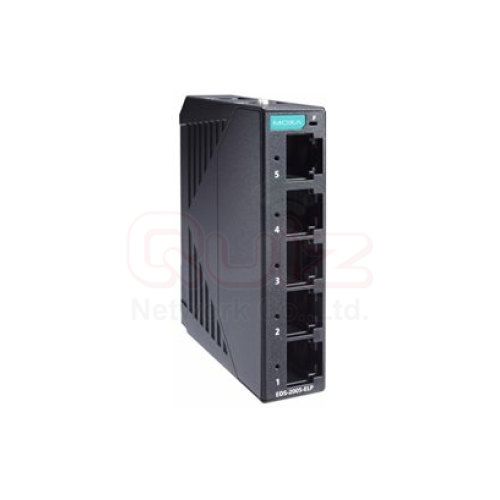

ขอใบเสนอราคา ขาย Moxa EDS-2005-ELP 5-Port Entry-level Unmanaged Switch, 5 Fast TP ports, -10 to 60°C ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
EDS-2005-ELP5-Port Entry-level Unmanaged Switch, 5 Fast TP ports, -10 to 60°C • 1 removable 3-contact terminal block(s) • 10/100BaseT(X) (RJ45 connector) • Compact size for easy installation • QoS supported to process critical data in heavy traffic • IP40-rated metal housing • -10 to 60°C wide operating temperature range housing : Plastic housing
-
10/100BaseT(X) Ports (RJ45 connector)
5
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed -
Standards
IEEE 802.3 for 10BaseT
IEEE 802.1p for Class of Service
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
-
Processing Type
Store and Forward
-
MAC Table Size
2 K
-
Packet Buffer Size
768 kbits
-
Ethernet Interface
Quality of Service (QoS), Broadcast Storm Protection (BSP)
-
Connection
1 removable 3-contact terminal block(s)
-
Input Current
0.045 A @ 24 VDC
-
Input Voltage
12/24/48 VDC
-
Operating Voltage
9.6 to 60 VDC
-
Overload Current Protection
Supported
-
Reverse Polarity Protection
Supported
-
Dimensions
19 x 81 x 65 mm (0.74 x 3.19 x 2.56 in)
-
Installation
DIN-rail mounting
Wall mounting (with optional kit) -
Weight
56 g (0.12 lb)
-
Housing
Plastic
-
Ambient Relative Humidity
5 to 95% (non-condensing)
-
Operating Temperature
-10 to 60°C (14 to 140°F)
-
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Safety
UL 61010-2-201
EN 62368-1 (LVD) -
EMC
EN 55032/35
EN 61000-6-2/-6-4 -
EMI
CISPR 22, 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF -
Shock
IEC 60068-2-27
-
Vibration
IEC 60068-2-6
-
Freefall
IEC 60068-2-32
-
Time
4,814,369 hrs
-
Standards
Telcordia (Bellcore), GB
Warranty
Warranty / เงื่อนไขการรับประกัน: ติดต่อสอบถามเพิ่มเติม
