ENR-120 2MP Bullet with D/N Adaptive IR Basic WDR SLLS Vari-focal lens f2 8-12mm/F1 4 (HOV 92 5?-35 9?) H 264 1080p/30fps DNR Audio MicroSDHC/MicroSDXC PoE IP68 IK10 (metal casing) DI/DO

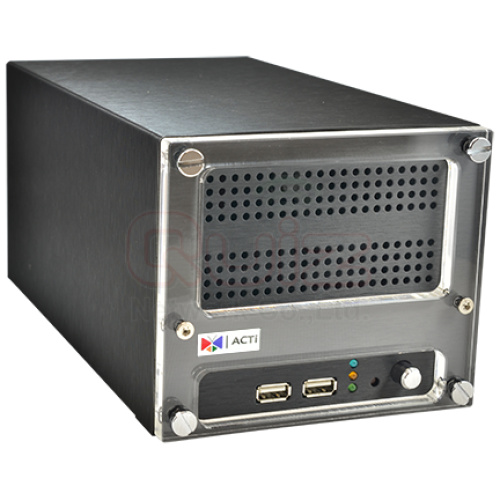

• 2-bay Desktop Standalone NVR
• Maximum Number of Video Devices: 9
• Free License: 9
• Event trigger, response and notification
• Workstation, Web Client, Mobile Client
• Video export formats: AVI, RAW

Device

Product Type	Standalone NVR
Maximum Resolution	Local: up to 4MP; Remote: up to10MP
Maximum Number of Cameras	9
Maximum Number of Video Devices	9
Maximum Number of Clients	Local: 1, Remote: 2

License

License required	No
Free License	9

Live View

Display Layout Mode	Local:1,2,4,9,1+5,1+7,2+4 Remote:1,2,4,9,1+5,1+7,2+4
Fisheye Dewarping	Yes
Local Live View performance	Please check “Standalone NVR Performance Validator” (http://www.acti.com/SANVRPerformance)
Digital Zoom	Yes
Event Status	Display event status upon alarm or upon connection loss or recovery between server and client
Instant Playback	Instant Playback in live view window (Remote client)

PTZ

PTZ Control	PTZ Control, Speed Control, 32 preset points
Joystick	USB based joystick supported

Video

Compression

H.264

Audio

Audio Compression

PCM, G.711

Network

Network Protocol & Service	IPv4/v6, TCP, IP, UDP, HTTP, HTTPS, DHCP (Server/Client), PPPoE, RTP, RTSP, DNS, DDNS, NTP, SNTP, ICMP, ARP, SMTP, UPnP, To be available through future firmware upgrade
Ethernet Port	Total ports: 2 port(s) (LAN 1) Non-PoE: 1 port(s), Ethernet (1000 Base-T), RJ-45 connector (LAN 2) Non-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector
Security	HTTPS encryption, Password protected user level

Recording

Scheduled Recording	Yes
Event Recording	Yes
Manual Recording	Yes
Event Speed-up Recording	Yes
Dual Stream Management	Yes
Maximum Recording Throughput	36 Mbps

Search & Playback

Playback Control	Continuous forward and backward playback with speeds 0.5x/1x/2x/4x/8x/16x/32x, pause, stop
Synchronized Playback	9 channels
Video Export	AVI, RAW

Event

Event Trigger	Video motion detection, External device through digital input, Network loss and recovery
Event Response	Go to PTZ preset point or preset tour, Play alert sound, E-mail notification with snapshots, Activate external device through digital output

System

Permission control	Unlimited number of users, Customizable permissions for user groups
Client PC Operating System	Windows 7 SP1, Windows 8.1
Server Operating System	Embedded Linux
Mobile Client Program	Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, iPad, Android device
USB	2-Port USB 2.0
Language	Multi-Language
System Status Monitor	Real time status reports on remote browser

Integration

Unified Solution	Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
ONVIF Compliant	Yes, Profile S
Web Browser	IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.)

Storage

Storage Bay	SATA, Max. 2 Disk(s) (without storage disks)
HDD Size	3.5″
Maximum Recording Capacity	14TB x2

Interface

Local Access	USB keyboard & mouse, USB Joystick
Local Display Interface	HDMI x 1,

General

Power Source	DC 12V
Weight	1390g (3.064lb)
Dimensions	(W x H x D): 135mm x 121mm x 251mm (5.3″ x 4.8″ x 9.9″)
Bundled Accessories	Power Adapter
Fan	Yes
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity	10% – 85% RH
Remote Access	Workstation, Web Client, Mobile Client
Approvals	CE, FCC, UL (for bundled power adapter)
Warranty	3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
