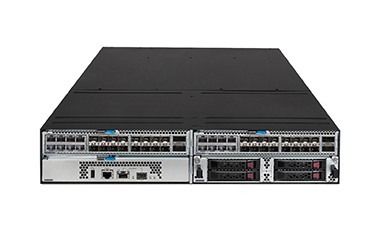

EWP-WX5860XH3C WX5860X Access Controller
Dimensions (H × W × D)
88.1 × 440 × 660 mm ( 3.47 ×17.32×25.98 in)
Weight (full configuration)
22.9 kg
Throughput
80/160Gbps
Ports
Support 2 interface cards at most. The specification of each card:
2 x 40G(QSFP+)
8 x 10G(SFP+)
8 x GE Combo
(2×40G and 8×10G are mutuallyexclusive)
1*Console
2*USB
1*OOBM
Power supply
Removable AC or DC power modules
Support for 1+1 or 1+3 power module redundancy
(Power module should be purchased separately.)
Maximum power consumption
< 502 W
Temperature
Operating temperature: 0°C to +45°C (+32°F to +113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
Relative humidity (non-condensing)
Operating and storage humidity: 5% to 95%
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 1 ปีเต็ม
