Description
ขอใบเสนอราคา ขาย G2206P-4-63W IP-COM Smart 9GE+1SFP Cloud Managed Swicth With 8-Port PoE , ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

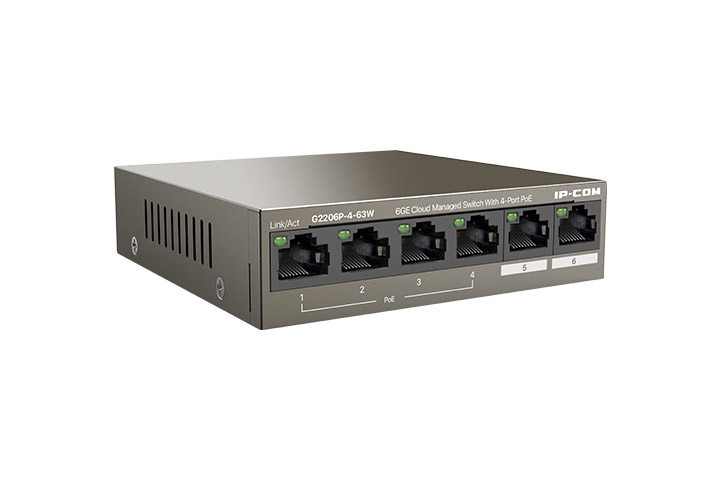

G2206P-4-63WSmart 9GE+1SFP Cloud Managed Swicth With 8-Port PoE , 250M Cable Extension
G2206P-4-63W
6GE Cloud Managed Switch With 4-Port PoE
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af/at, IEEE 802.1q standards
- 4 × 10/100/1000 Base-T Ethernet ports (PoE & Data), 2 × 10/100/1000 Base-T uplink ports (Data)
- 2 K MAC address table and MAC address auto learning
- IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
- 12 Gbps switching fabric for non-blocking line-speed forwarding
- Maximum PoE output of a single port: 30 W, Total PoE output of the switch: 58 W
- ProFi Cloud web UI and App management
- 250 m network extension, PoE management, QVLAN, VLAN transparent transmission, traffic statistics, loop guard, DHCP Snooping and MAC address binding
Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1q, IEEE802.3af, IEEE802.3at |
LED indicators | One Link/Act LED indicator for each port One PWR LED indicator for each device One SYS LED indicator for each device |
Fixed ports | 4 × 10/100/1000 Base-T Ethernet ports (PoE & Data) 2 × 100/1000 Base-T Ethernet port (Data) |
Lightning protection | Port: 6 kV Power supply: 6 kV |
Forwarding mode | Store-and-forward |
Switching capacity | 12 Gbps |
Packet forwarding rate | 8.9 Mpps |
Switching buffer | NA |
MAC address table | 2 K |
PoE Power Supply | IEEE 802.3af/at standards PoE power supply on ports 1-4 Voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is – |
Input voltage | 100 – 240V AC 50/60Hz |
Dimensions (L x W x H) | 100 mm × 100 mm × 26 mm |
Total Power Consumption | Total power consumption: <63 W Maximum PoE output: 58 W |
Environment | Operating temperature: 0°C – 45°C Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing |
Certificates | FCC, CE, RoHS |
Software features | |
---|---|
PoE Management | Support dynamic display of PoE consumption power and PoE remaining power Support PoE ports on and off |
Security Features | Support whitelist binding of MAC addresses, ports and VLAN Support port isolation |
VLAN | Support VLAN transparent transmission Support IEEE 802.1q VLAN |
DHCP | Support DHCP Client Support DHCP Snooping |
Port Properties | Support port flow control Support port isolation Support N:1 port mirroring Support port statistics of received and transmitted packets, conflict packets and CRC error packets |
Rate Limit | Support ingress and egress rate limits on ports |
Loop Guard | Support loop detection and guard on each port |
Storm Control | Support storm control on ports |
Upgrade, Import and Export | Support HTTP upgrade Support configuration import and export |
Management and Maintenance | Support ProFi App management Support ProFi Cloud web UI management Support local web UI management Support ping test |
Warranty
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 3 ปีเต็ม
