Description
ขอใบเสนอราคา ขาย GS724T 24-Port Gigabit Ethernet Smart Switch with 2 SFP Ports ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

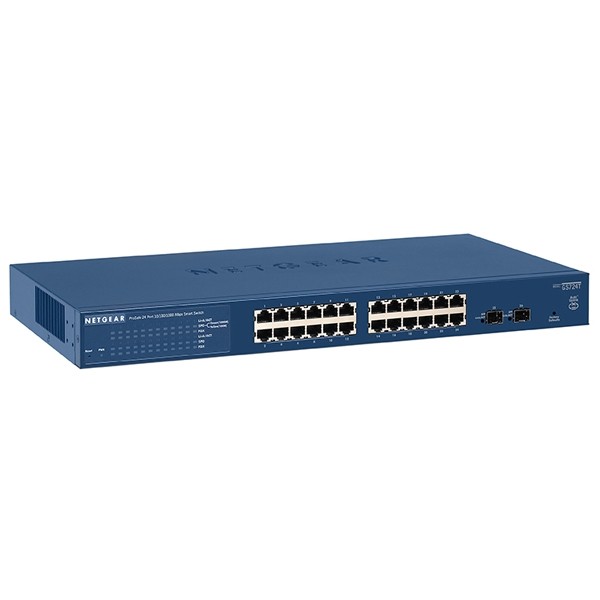

GS724T NETGEAR 24-Port Gigabit Ethernet Smart Managed Pro Switch (GS724T) – with 2 x 1G SFP, Desktop/Rackmount, and ProSAFE
Overview | NETGEAR GS724T ProSAFE Gigabit Smart Managed Switches 24 Port, 2 Port SFP รองรับทำ VLAN, QOS, IGMP Snooping Config ผ่าน Web GUI, Rackmount |
Interfaces | 24 Port 10/100/1000 Mbps auto-sensing Gigabit- Ethernet switching ports, and two dedicated 1000M SFP fiber ports. |
Forwarding modes | Store-and-forward |
Bandwidth | 52 Gbps |
Priority queues | 8 |
Priority queuing | Weighted Round Robin (WRR) |
MAC Address database size | 16k media access control (MAC) addresses |
Addressing | 48-bit MAC address |
Multicast groups | 512 |
Number of static routes | 32 |
Number of routed VLANs | 15 |
Number of ARP Cache entries | 512 |
Number of DHCP snooping bindings | 8K |
Number of DHCP static entries | 1024 |
ACL | 100 shared for MAC, IP and IPv6 ACLs |
Jumbo frame support | up to 9K packet size |
Acoustic noise (ANSI-S10.12) | 0 dBA |
Mean Time Between Failures (MTBF) | 567,680 hours |
L2 SERVICES – VLANS | |
IEEE 802.1Q VLAN Tagging | Yes |
Protocol based VLANs | Yes |
MAC based VLANs | Yes |
Voice VLAN | Based on phones OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP) |
Protocol-based VLAN/td> | Yes |
NETWORK SECURITY | |
IEEE 802.1x | Yes |
Guest VLAN | Yes |
RADIUS based VLAN assignment via .1x | Yes |
MAC-based .1x | Yes |
RADIUS Accounting | Yes |
Network Storm Protection, DoS | Yes |
Broadcast, Unicast, Multicast DoS Protection | Yes |
DoS Attacks | Yes |
Dynamic ARP inspection | Yes |
L2 SERVICES – AVAILABILITY | |
IEEE 802.3ad – LAGs | Yes |
LACP | Yes (26 LAGS with max. of 8 members in each LAG) |
Broadcast Storm Control | Yes |
IEEE 802.3x (Full Duplex and flow control) | Yes |
IEEE 802.1D Spanning Tree Protocol | Yes |
IEEE 802.1w Rapid Spanning Tree | Yes |
IEEE 802.1s Multiple Spanning Tree | Yes |
L2 SERVICES – MULTICAST FILTERING | |
IGMP Snooping (v1, v2 and v3) | Yes |
MLD Snooping Support (v1 and v2) | Yes |
IGMP Snooping queries | Yes |
Block unknown Multicast | Yes |
Multicast VLAN Registration | Yes |
L3 SERVICES – DHCP | |
DHCP Clien | Yes |
DHCP Snooping | Yes |
L3 SERVICES – IPv4 Routing | |
Static Routing | Yes |
VLAN Routing | Yes |
IP Source Guard | Yes |
NETWORK MONITORING & DISCOVERY | |
802.1ab LLDP | Yes |
SNMP | V1, V2, V3 |
RMON 1,2,3,9 | Yes |
NETWORK TRAFFIC | |
Access Control Lists (ACLs) | Yes |
IP-based ACLs (IPv4 and IPv6) | Yes |
MAC-based ACL | Yes |
TCP/UDP-based ACL | Yes |
MAC lockdown | Yes |
MAC lockdown by the number of MACs | Yes |
IEEE 802.1x Radius Port Access Authentication | Yes |
Port-based security by locked MAC addresses | Yes |
Dynamic VLAN Assignment | Yes |
Dynamic ARP inspection | Yes |
QUALITY OF SERVICE (QOS) | |
Access Lists | Yes |
L2 MAC, L3 IP and L4 Port ACLs | Yes |
Ingress rate limiting | Yes |
Egress rate limiting | Yes |
Support for IPv6 fields | Yes |
DiffServ QoS | Yes |
IEEE 802.1p COS | Yes |
Dst MAC and IP | Yes |
IPv4 and v6 DSCP | Yes |
IPv4 and v6 TOS | Yes |
WRED (Weighted Deficit Round Robin) | Yes |
Strict Priority Queue Technology | Yes |
Timing and Synchronization for Time- Sensitive Applications (IEEE802.1AS) | Yes |
Stream Reservation Protocol (SRP) (IEEE802.1Qat) | Yes |
Forwarding and Queuing for Time-Sensitive Streams (IEEE802.1Qav) | Yes |
Audio Video Bridging Systems (IEEE802.1BA) | Yes |
Auto-VoIP | Yes |
Auto Video | Yes |
Port Mirroring | Yes |
IEEE NETWORK PROTOCOLS | |
IEEE 802.3 Ethernet | IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX |
IEEE 802.3i 10BASE-T | IEEE 802.3ae 10-Gigabit Ethernet |
IEEE 802.3u 100BASE-T | IEEE 802.3ad Trunking (LACP) |
IEEE 802.3ab 1000BASE-T | IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) |
IEEE 802.1Q VLAN Tagging | IEEE 802.1p Class of Service |
IEEE 802.3x Full-Duplex Flow Control | IEEE 802.1Qat* |
IEEE802.1Qav* | * The feature can be acquired through the purchase of EAV software license that is sold separately from the switch. Please refer to ordering information for part numbers of these licenses. |
MANAGEMENT | |
Password Management | Yes |
Configurable Management VLAN | Yes |
Admin Access Control via Radius and TACACS+ | Yes |
Web-based Graphical User Interface (GUI) | Yes |
Smart Control Center (SCC) for Multi-switch Management | Yes |
IPv6 Management | Yes |
Dual Software (firmware) Image | Yes |
Dual Configuration File | Yes |
SNTP Client over UDP Port 123 | Yes |
SNMP v1/v2 | Yes |
SNMP v3 with Multiple IP Addresses | Yes |
RMON 1,2,3,9 | Yes |
Port Mirroring | Yes |
Many to One Port Mirroring | Yes |
Cable Test Utility | Yes |
SSL/HTTPS and TLS v1.0 for Web-based access | Yes |
File Transfers (uploads, downloads) | TFTP / HTTP |
HTTP Download (firmware) | Yes |
Syslog (RFC 3164) | Yes |
LEDs | |
Per port | Speed, Link, Activity |
Per device | Power and Fan (GS748T only) |
PHYSICAL SPECIFICATIONS | |
Weight (kg) | 2.74 |
Dimensions (WxDxH) mm | 440 x 204 x 43 |
POWER CONSUMPITON | |
WHEN ALL PORTS USED, LINE-RATE TRAFFIC AND MAX POE IF APPLICABLE | |
Worst case, all ports used, line-rate traffic, max PoE | 17.4w |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Temperature | 32? to 122?F (0? to 50?C) |
Operating Humidity | 90% maximum relative humidity, non-condensing |
Operating Altitude | 10,000 ft (3,000 m) maximum |
Storage Temperature | – 4? to 158?F (–20? to 70?C) |
Storage Humidity | 95% maximum relative humidity, non-condensing |
Storage Altitude | 10,000 ft (3,000 m) maximum |
CERTIFICATIONS | |
Electromagnetic Emissions and Immunity |
CE mark, commercial |
Safety | CE mark, commercial CSA certified (CSA 22.2 #950) UL listed (UL 1950)/cUL IEC 950/EN 60950 |
