Specification

SKU :  JW823A

Brand : Aruba

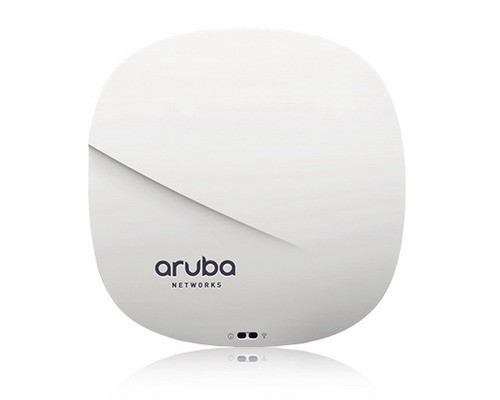

Model : [JW823A] Access Point “Aruba” IAP-335 (RW) Instant 4×4:4 11ac wave 2 AP

Ports : One HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps), One 10/100/1000BASE-T Ethernet network interface (RJ-45)

Wi-Fi Radio Specifications : a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 600 Mbps in the 2.4 GHz

Wi-Fi Antennas : Four RP-SMA connectors for external dual band antennas. Internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 2.3 dB in 2.4 GHz and 1.2 dB in 5 GHz.

Dimension : 225mm (W) x 224mm (D) x 52mm (H)

Weight : 1150g

Power sources and consumption : Maximum (worst-case) power consumption: 25.3W (802.3at PoE), 13.2W (802.3af PoE) or 25W (DC)

Mounting : The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling.

Mode : Controller-managed mode, Aruba Instant mode, Remote AP (RAP), Air monitor (AM)

Warranty :  Limited Lifetime Warranty
