Description
ขอใบเสนอราคา ขาย POE-E201 Planet 802.3at 30W Gigabit PoE Repeater ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

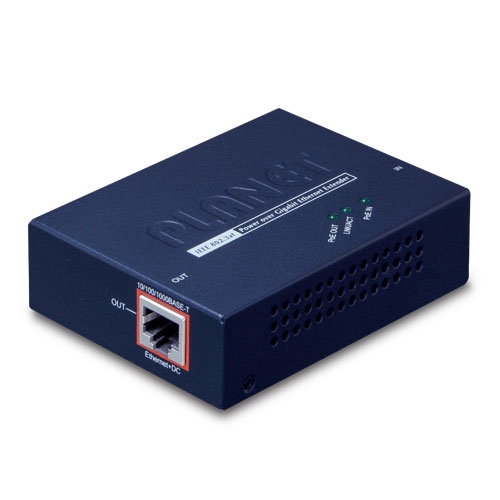

POE-E201802.3at 30W Gigabit PoE Repeater
Hardware Specifications | |
---|---|
LAN IN | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ45 connector |
LAN OUT | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” out auto MDI/MDI-X, auto-negotiation RJ45 connector |
Dimensions (W x D x H) | 94 x 70 x 26 mm |
Weight | 189g |
Power Requirements | IEEE 802.3at PoE+ compliant with voltage within 52V-56V DC IEEE 802.3af PoE compliant with voltage within 48V-51V DC |
Power Consumption | 2.6 watts (system maximum) /PoE Output at maximum 36 watts |
Enclosure | Metal |
Installation | Wall or DIN-rail mounting |
Protection | ESD (Ethernet): 2KV Surge (EFT for power) : 2KV |
LED Indicators | 1 x PoE IN (Green) 1 x LAN Data (Green) 1 x PoE OUT (Amber) |
Network Cable | 10BASE-T: 4-Pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-Pair UTP Cat. 5e, 6, 6A up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m, 328ft) |
Switching Specifications | |
Data Rate | 10/100/1000Mbps |
Switch Architecture | Store-and-Forward |
Switch Throughput | 10Mbps:14880pps@64Bytes 100Mbps:148810pps@64Bytes 1000Mbps:1488000pps@64Bytes |
Maximum Frame Size | 9K bytes |
Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
Power over Ethernet | |
PoE Standard | “PoE In”Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per “PoE Out” Port IEEE 802.3at Power over Ethernet Plus end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet standard |
PoE Power Supply Type | End-span/Type A |
PoE Power | “PoE In” Port 48~56V DC, max. 30.8 watts “PoE Out” Port 44~52V DC, max. 26 watts |
Power Pin Assignment | “PoE In” Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) “PoE Out” Port 1/2 (+), 3/6 (-) |
Maximum Distance | 500 meters with daisy-chain installation of 4 units |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standard Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control |
Environment | |
Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
