Description
Ruijie RG-AP130-L Discount

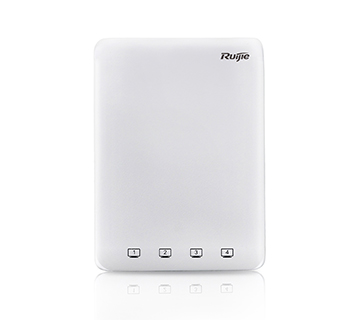

The Ruijie Wall AP AP130(L) is designed for wireless deployment in hotels, offices, residential buildings and settings alike, supporting the latest protocol, 802.11ac, with 4 extra LAN port for in-room network equipment and guest wired internet connection use.
The mini-size wall-mountable AP has the same size as a standard 86-type faceplate. Featuring a compact design and easy deployment, the AP enables zero disruption to the interior finishes and offers the best solution for scenarios with delicate interior design.
Taking advantage of Ruijie hybrid management flexibility, customer can choose the Ruijie Cloud Management and Hardware Controller for varies fast-changing business needs.
– Target Deployments | |
Target Deployments | For wireless deployment in hotels, offices, residential buildings |
– Basic Specifications | |
Radio | Concurrent dual-radio dual-band |
Protocol | 802.11a/b/g/n/ac |
Operating Bands | 2.4GHz and 5GHz |
Antenna | Built-in omnidirectional antenna (Base gain 3.5dBi) 2×2 MIMO |
Max Throughput | 1.167Gbps |
Spatial Streams | 2 |
IP Rating | IP41 |
– Ports | |
Service Ports | Front: 4 10/100M Ethernet ports Side: 1 RJ-45 pass-through port (RJ-11 combo) Rear: 1 10/100/1000M uplink port 1 RJ-45 pass-through port (RJ-11 combo) |
– Power | |
Power Supply | PoE (802.3af) |
Power Consumption | <8W |
– WLAN | |
Maximum clients per AP | 32 |
BSSID capacity | 16 |
SSID hiding | Support |
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID | Support |
Remote Intelligent Perception Technology (RIPT) | Support |
Intelligent load balancing based on the number of users or traffic | Support |
STA control | SSID/radio-based |
Bandwidth control | STA/SSID/AP-based speed control |
Band Steering (5G Priority) | Support |
Dynamic Frequency Selection(DFS) | Future release support |
– Security | |
PSK authentication | Support |
Web portal authentication (by Ruijie Cloud integration) | Support |
802.1x authentication | Support |
Data encryption | WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
PEAP authentication | Support |
Data frame filtering | Whitelist, static/dynamic blacklist |
User isolation | Support |
Rogue AP detection and countermeasure | Support |
Standard & Extended IP & MAC ACL | Support |
RADIUS | Support |
CPU Protection Policy (CPP) | Support |
Wireless Intrusion Detection System(WIDS) | Support |
IPv4 address | Static IP address or DHCP reservation |
– Management and Maintenance | |
Network management | SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management |
Fault detection and alarm | Support |
Cloud AC management | Support |
Statistics and logs | Support |
– External Characteristics | |
Lock | Standard: Anti-theft screws and ordinary screws Optional: Lock and key |
LED Indicators | 1 LED status indicator |
– Relevant Standard | |
Wi-Fi Alliance Certification | Support |
Safety Standard | GB4943, EN/IEC 60950-1 |
EMC Standard | GB9254, EN301 489 |
Health Standard | EN 62311 |
Radio Standard | EN300 328, EN301 893 |
Vibration Standard | IEC60068-2-31, ETSI EN300 019, NEBS GR-63-CORE |
– Specifications | |
Dimensions (W x D x H) (mm) | 116 × 86 × 42 |
Weight | 0.23kg |
– Work Environment | |
Temperature | Operating Temperature: -10°C to 45°C Storage Temperature: -40°C to 70°C |
Humidity | Operating Humidity: 10% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) |
– Installation Mode | |
Installation Mode | Standard 86-type faceplate installation |
