Description
ขอใบเสนอราคา ขาย Reyee RG-EST310 V2 5GHz 10dBi Outdoor wireless bridge ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

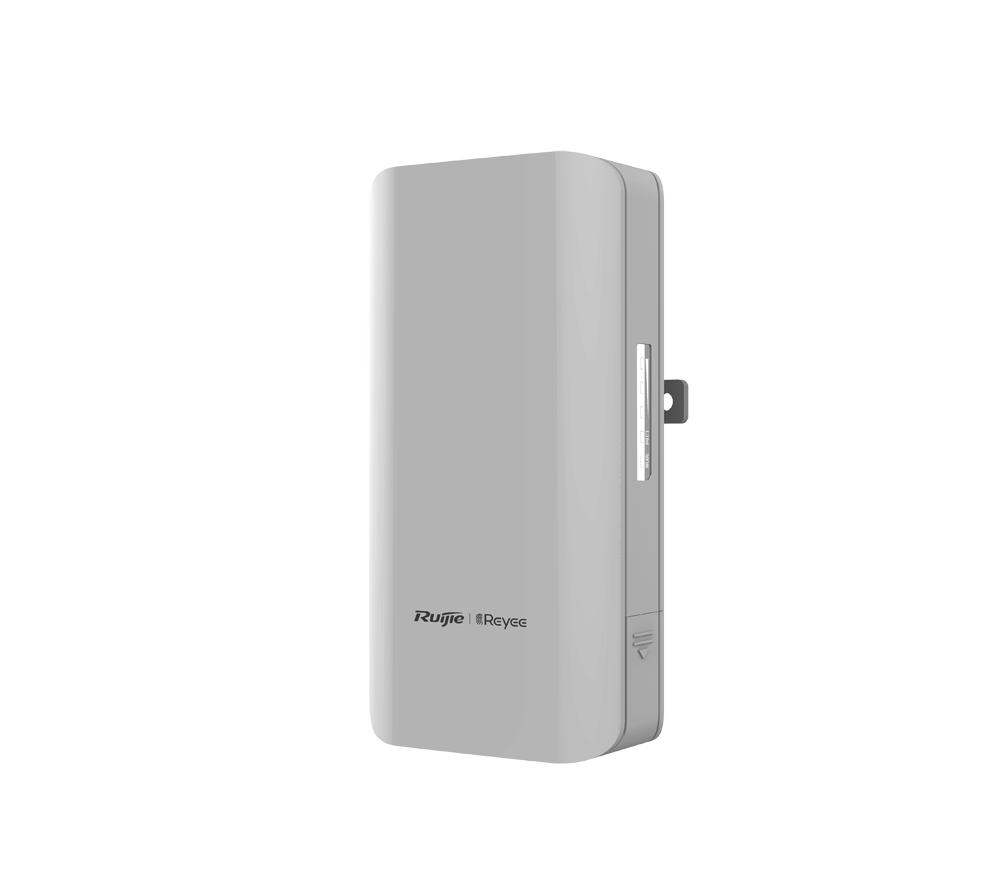

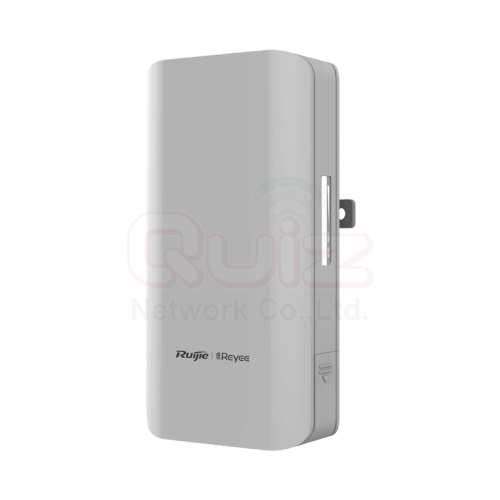

RG-EST310 V25GHz 10dBi Outdoor wireless bridge, 2 devices paired in the package for the camera-end and NVR-end, up to 867 Mbps throughput, built-in internal directional antenna, 12V DC and 24V passive PoE, support eweb and Ruijie cloud management; Wall-mounted/Pole-mounted installation; 2 24V PoE adapters included; When use 3rd party power supply, the voltage should be 24V.
(Avaialbe only in Turkey, Cyprus, Thailand, Myanmar, Bangladesh,Vietnam, Singapore, Georgia,Albania, Hongkong, Macao)
Model | RG-EST310 V2 / RG-EST310 |
Hardware specifications | |
RAM / Flash | 64MB / 8MB |
Radio | 5GHz, dual-stream single-band 2×2 |
Operating Band | 802.11a/n/ac: 5.150~5 .350GHz, 5.470~5.725GHz , 5.725~5 .850GHz (country specific) |
Antenna | Built-in directional antennas, 10dBi |
Polarization | Horizontal: 60°, Vertical: 30° |
Spatial Streams | 2 |
Maximum Throughput | Up to 867Mbps at 5GHz |
Max. Transmit Power | ≤400mW (26dBm) |
Dimensions |
147mm(D)×76mm(W)×37mm(H) (Dimensions per device) (Same size for the transmitter and receiver,
H: height of the device excluding the mounting kits) |
Weight | 0.35kg |
Ports | 1 10/100Base-T Ethernet port, supports 24VDC non-standard PoE
1 DC port, supports 12VDC power supply |
Hardware Button | 1 reset button |
Status Indicators |
System indicator: 1
Port indicator: 1 Bridge signal strength indicators: 3 |
Power Supply | Support 12VDC power supply and 24VDC non-standard PoE |
Power Consumption | ≤7W |
Environment |
Operating temperature: -30°C ~ 55°C (-22°F ~ 131°F) Storage temperature: -40°C~70°C (-40°F ~ 158°F) Operating humidity: 5%~95% (noncondensing)
Storage humidity: 5%~95% (noncondensing) |
Installation | Wall-mounted/ Pole-mounted (straps provided) |
IP Rating | IP54 |
Lightning Protection | 4KV |
Radio Standard | SRRC certification |
Software Features | |
Automatic Bridging |
Support
The recorder-end and camera-end are automatically paired for bridging by default |
Device Configuration and
Management |
Support App/Web configuration |
QR Code Login | Users can log in to the device configuration interface by scanning the
QR code of the device using the app |
Self-healing | Automatic restart upon equipment failure |
Automatic Channel Adjustment | Automatically adjust the channel upon power-on |
Warranty
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 3 ปีเต็ม
