[SG6428XHP]

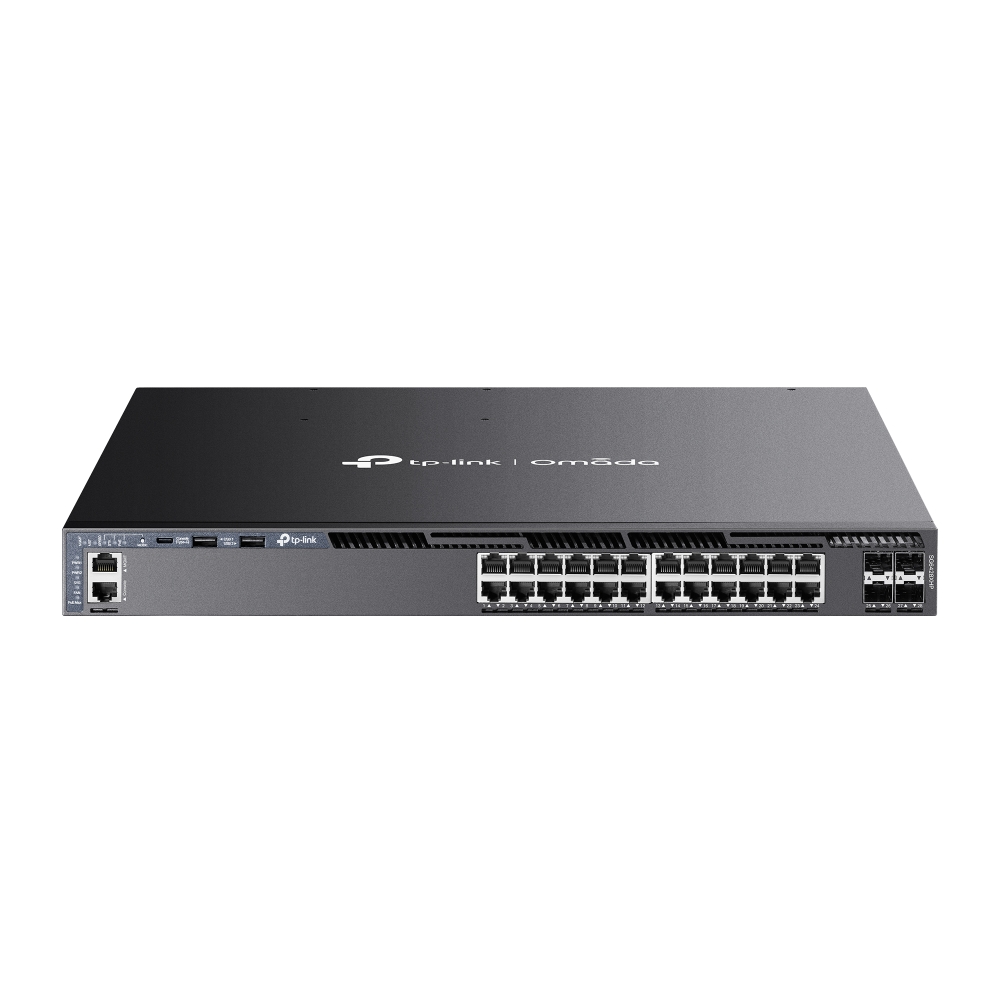

Tp-Link SG6428XHP Omada 24-PortGigabit Stackable L3 Managed PoE+ Switch ราคา Discount
฿ 39,680.00Non-Vat ฿ 42,457.60Vat 7%
Contact
ติดต่อสอบถามเช็คสต็อค, ใบเสนอราคาและงานติดตั้งได้เบอร์ด้านล่างนี้
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
Description
ขอใบเสนอราคา ขาย Tp-Link SG6428XHP Omada 24-PortGigabit Stackable L3 Managed PoE+ Switch ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
SG6428XHPOmada 24-PortGigabit Stackable L3 Managed PoE+ Switch with 4 10GE SFP+ Slots
PORT: 24× Gigabit PoE+ RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports
SPEC: 802.3at/af, max 720 W PoE Power (depend on power supply module), 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, Static Routing, DHCP Server, DHCP Relay, ERPS, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies
SG6428XHP
Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots
- 24× Gigabit RJ45 PoE+ ports
- 4× 10 Gbps SFP+ slots
- Up to 720 W total PoE budget*
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies,** VRRP, and ERPS
- Centralized cloud management via Omada SDN controllers
- Standalone management via web, CLI, SNMP, and RMON
| HARDWARE FEATURES | |
|---|---|
| Interface | • 24× 10/100/1000 Mbps PoE+ RJ45 Ports • 4× 10G SFP+ Slots • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port |
| Fan Quantity | Four Field-replaceable and Hot-swappable Fans |
| Power Supply | Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)
**Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports, up to 30 W per port • PoE Power Budget: up to 720 W* *The total PoE budget varies with the power supply modules. |
| Dimensions ( W x D x H ) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Mounting | Rackmountable |
| Max Power Consumption | • 42.9 W (110 V/60 Hz) (With no PD connected) • 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC) |
| Max Heat Dissipation | • 146.29 BTU/hr (110 V/60 Hz) (With no PD connected) • 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 128 Gbps per Unit |
| Stacking | • Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: 20 Gbps Per Port (Full-Duplex) |
| Packet Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 3 MB |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Class of Service – 8 Queues of Priority – Port Priority – IEEE 802.1p Priority – DSCP Priority – Queue Min-Bandwidth – Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control – Rate Limit – Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows – QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • IP Interfaces: – IPv4: Max 256, IPv6: Max 256 • Static Routing – Max 1,024, IPv6: Max 512 • Host Route Table: Max 6,100 entries • RIP: Version v1/v2, Max 8,190 • OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 • VRRP: Version v2/v3, Max 64 groups • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • Proxy ARP • DHCP Server: – Max 8K IP Pools – Max 1,000 Manual Binding Entries • DHCP Relay: – Relayed Interface – Relayed VLAN |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • Supports 2,048 IGMP groups • ERPS • Mirroring • RSPAN • MAC Address Table • PIM-DM (IPv4) • Multicast – IGMP Snooping – MLD Snooping – L2 Multicast Table – Fast Leave – Multicast VLAN Registration (MVR) – Static Multicast IP – Multicast Filtering |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • VLAN VPN • Voice VLAN • Private VLAN |
| Security | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control – kbps/ratio control mode • 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control |
| MANAGEMENT | |
|---|---|
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 – Trap/Inform – RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • EEE |
| OTHERS | |
|---|---|
| Package Contents | • SG6428XHP Switch • Power Cord • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
