Description
ขอใบเสนอราคา ขาย H3C SMB-S1850-28P-PWR-GL S1850 Gigabit Web Managed Switch ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

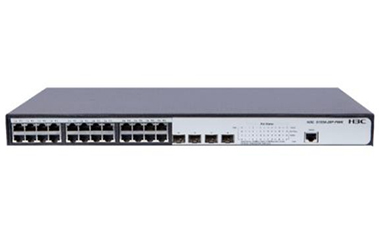

SMB-S1850-28P-PWR-GL H3C S1850-28P-PWR 24×10/100/1000 Base-T PoE 190W, 4×100/1000 Base-X SFP
Item |
S1850-10P |
S1850-28P |
S1850-28P-PWR |
S1850-52P |
|||||
Fixed ports |
8 × 10/100/1000Base-T Ethernet ports 2 × 100/1000 BASE-X SFP ports |
24 × 10/100/1000Base-T Ethernet ports 4 × 100/1000 BASE-X SFP ports |
48 × 10/100/1000Base-T Ethernet ports 4 × 100/1000 BASE-X SFP ports |
||||||
Management Ethernet ports |
1 RJ-45 console port to access limited CLI port |
||||||||
Dimensions (H × W × D) |
44 × 266 × 162 mm |
44 × 440 × 173 mm |
44 × 440 × 238 mm |
44 × 440 ×238 mm |
|||||
Weight |
0.9 kg |
2.25 kg |
3.4 kg |
3.4 kg |
|||||
Fan |
Fanless |
Fanless |
2 |
1 |
|||||
Switching capacity |
20 Gbps |
56 Gbps |
56 Gbps |
104 Gbps |
|||||
Packet forwarding rate |
15 Mpps |
42 Mpps |
78 Mpps |
||||||
MAC table |
8K |
16K |
|||||||
Lightning protection level |
6 KV |
||||||||
PoE power |
Not support |
Maximum per switch 190W Maximum per port 30W |
Not support |
||||||
AC input voltage |
AC:100V~240V AC,50/60Hz |
||||||||
Power consumption |
≤ 9W |
≤ 19W |
≤ 235W |
≤ 32W |
|||||
Operating temperature |
0ºC to 40ºC Short-term operating temperature : 0ºC to 45ºC |
||||||||
Operating humidity |
5% RH to 95% RH, non-condensing |
