Description

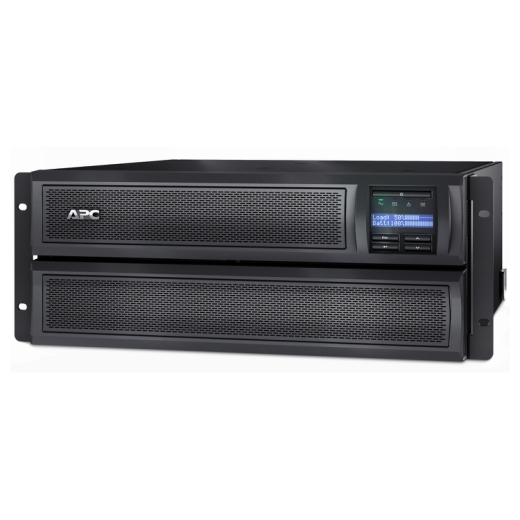

ขอใบเสนอราคา ขาย SMX2200HV-3Y APC Smart-UPS X 2200VA/1980Watts Rack/Tower LCD200-240V จำนวน VA 2200 VA กำลังไฟ (วัตต์) 1980 W Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
Technical Specifications
Output
Max Configurable Power (Watts)
1.98kWatts / 2.2kVA
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
208, 220, 240
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
140 – 280V
Number of Power Cords
1
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Replacement Battery
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
233 Watts
Extendable Run Time
1
Extended Run Options
Runtime
Communications & Management
Interface Port(s)
RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
Control panel
LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
645Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
432MM, 43.2CM
Maximum Width
178MM, 17.8CM
Maximum Depth
483MM, 48.3CM
Net Weight
38.56KG
Shipping weight
47.63KG
Shipping Height
330MM, 33.0CM
Shipping Width
586MM, 58.6CM
Shipping Depth
633MM, 63.3CM
Color
Black
Pallet Dimensions
31 x 48 x 43.5inches
# of Layers per Pallet
4.0
# of Units per Layer per Pallet
2.0
Pallet Weight
855.13lbs.
Units per Pallet
6.0
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
150.0BTU/hr
Conformance
Approvals
CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60950, IRAM, RCM, UL 1778, VDE
Standard warranty
3 years Onsite 8×5
