Description

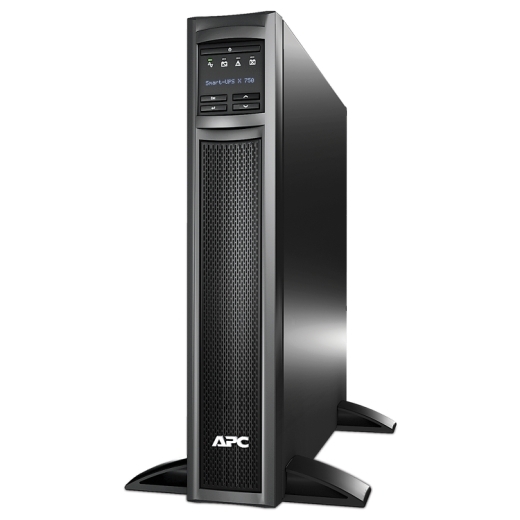

ขอใบเสนอราคา ขาย SMX750I-3Y APC Smart-UPS X 750VA/600Watts Rack/Tower LCD 230V จำนวน VA 750 VA กำลังไฟ (วัตต์) 600 W Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
Technical Specifications
Output
Max Configurable Power (Watts)
600 Watts / 750VA
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Topology
Line interactive
Waveform type
Sine wave
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
151 – 302 Adjustable, 160 – 286V
Number of Power Cords
1
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Included Battery Modules
1
Typical recharge time
3hour(s)
Replacement Battery
Battery Slots Empty
1
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
104 Watts
DC Overcurrent Protection
60A
Extended Run Options
Runtime
Efficiency
Communications & Management
Interface Port(s)
RJ-45 Serial, SmartSlot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
645Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
89MM, 8.9CM
Maximum Width
432MM, 43.2CM
Maximum Depth
490MM, 49.0CM
Net Weight
22.05KG
Shipping weight
26.5KG
Shipping Height
246MM, 24.6CM
Shipping Width
589MM, 58.9CM
Shipping Depth
620MM, 62.0CM
Color
Black
Units per Pallet
8.0
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0 – 15240meters
Audible noise at 1 meter from surface of unit
40.0dBA
Online thermal dissipation
69.0BTU/hr
Conformance
Approvals
CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty
3 years Onsite 8×5
Warranty
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 3 ปีเต็ม
