[SRTG10KXLI]

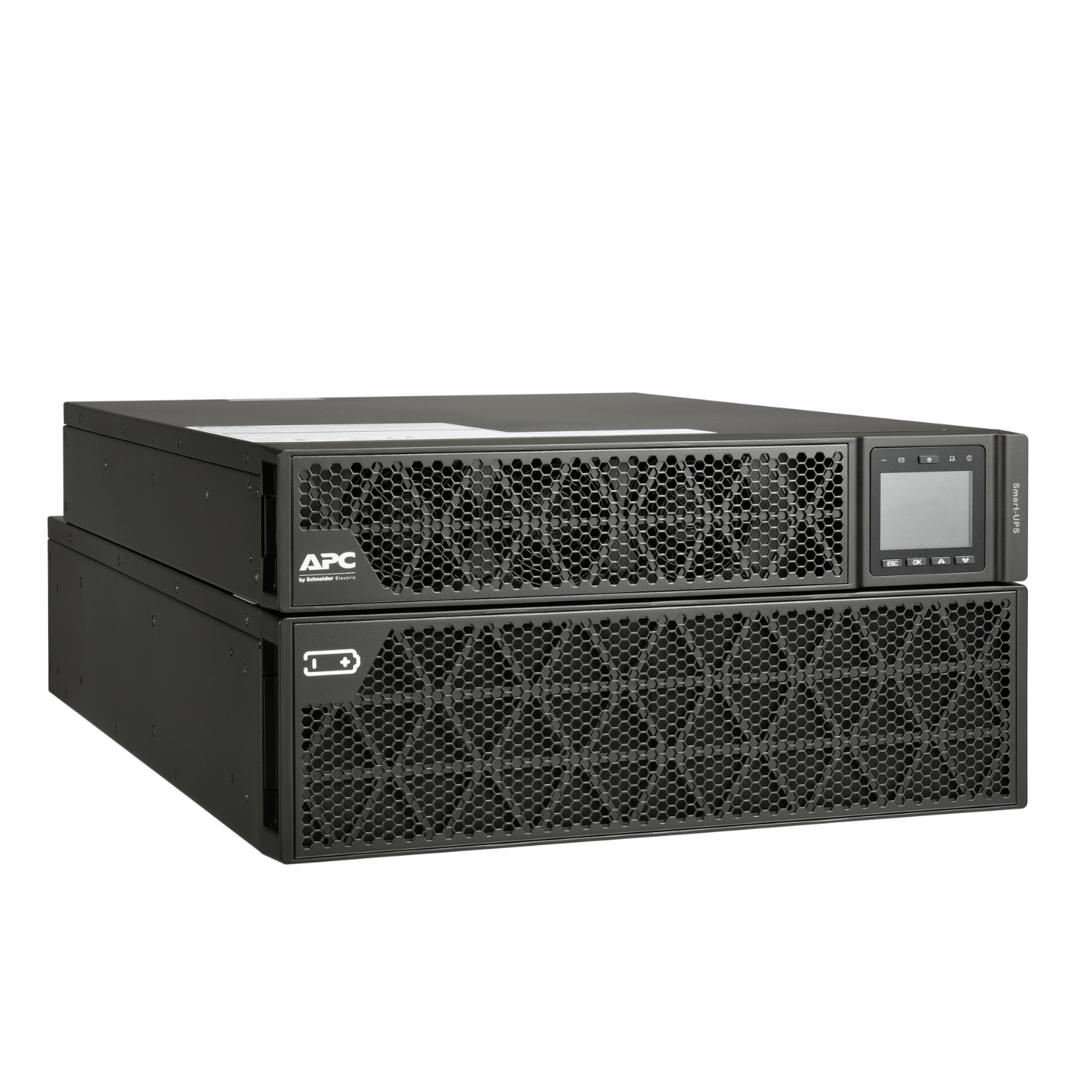

SRTG10KXLI APC Smart-UPS SRTG 10000VA ราคา Discount
ราคาพิเศษกรุณาขอผ่านทาง[email protected]
Contact
ติดต่อสอบถามเช็คสต็อค, ใบเสนอราคาและงานติดตั้งได้เบอร์ด้านล่างนี้
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
Description
ขอใบเสนอราคา ขาย SRTG10KXLI APC Smart-UPS SRTG 10000VA ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
SRTG10KXLI APC SRTG10KXLI Kit APC Smart-UPS SRTG 10000VA 230V 5 X 8 Power Up for (1) Smart-UPS Preventive Maintenance 5×8 Smart-UPS x 6 units NBD On-Site Upgrade Warranty Smart-UPS x 3 units
Main Input Voltage | 230 V |
---|---|
Other Input Voltage | 220 V 240 V |
Main Output Voltage | 230 V |
Other Output Voltage | 220 V 240 V |
rated power in W | 10000 W |
rated power in VA | 10000 VA |
nb of power socket outlets | 2 IEC 60320 C13 1 IEC 60320 C19 |
output connector type | Hard wire 3-wire (H N + E) 1 |
battery type | Lead-acid battery |
provided equipment | Smart UPS signalling RS-232 cable User manual |
Number of power module free slots | 0 |
---|---|
Number of power module filled slots | 0 |
redundant | No |
height | 21.7 cm |
---|---|
width | 44 cm |
depth | 62 cm |
net weight | 81.12 kg |
mounting preference | No preference |
mounting mode | Rack-mounted with kit |
two post mountable | 0 |
USB compatible | No |
network frequency | 40…70 Hz auto-sensing |
---|---|
number of input connectors | 1 hard wire 3-wire (1P + N + E) |
input voltage limits | 160…285 V |
maximum input current | 30 A |
max short time withstand current | 40 kA |
Maximum configurable power in W | 10000 W |
---|---|
harmonic distortion | Less than 2 % |
output frequency | 50/60 Hz +/- 3 Hz sync to mains |
crest factor | 3 : 1 |
UPS type | Double conversion online |
Wave type | Sine wave |
bypass type | Internal bypass (automatic and manual) |
full load runtime | 00:03:30 10000 W |
half load runtime | 00:11:00 5000 W |
Maximum configurable power in VA | 10000 VA |
ambient air temperature for operation | 0…40 °C |
---|---|
relative humidity | 0…95 % non-condensing |
operating altitude | 0…6600 ft |
ambient air temperature for storage | -15…45 °C |
storage Relative Humidity | 0…95 % Non-condensing |
storage altitude | 0.00…15240.00 m |
acoustic level | 55 dB |
heat dissipation | 2217.98 Btu/h |
IP degree of protection | IP20 |
