[SRV10KI]

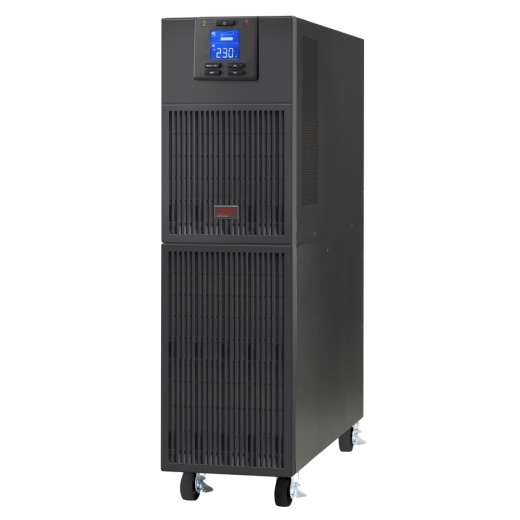

SRV10KI-2Y APC Easy UPS SRV 10000VA/10000Watt 230V จำนวน VA 10kVA กำลังไฟ (Watts) 10 KW Discount
ราคาพิเศษกรุณาขอผ่านทาง[email protected]
Contact
ติดต่อสอบถามเช็คสต็อค, ใบเสนอราคาและงานติดตั้งได้เบอร์ด้านล่างนี้
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
Description
ขอใบเสนอราคา ขาย SRV10KI-2Y APC Easy UPS SRV 10000VA/10000Watt 230V จำนวน VA 10kVA กำลังไฟ (Watts) 10 KW Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
Technical Specifications
Output
Max Configurable Power (Watts)
10.0kWatts / 10.0kVA
Efficiency at Full Load
94.0 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
110 – 300 Adjustable (half load), 176 – 300V
Efficiency at Full Load
94.0 %
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Battery Charge Power (Watts)
531 Watts
Runtime
Communications & Management
Interface Port(s)
DB-9 RS-232, Intelligent Smart Slot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
600Joules
Physical
Maximum Height
685MM, 68.5CM
Maximum Width
190MM, 19.0CM
Maximum Depth
447MM, 44.7CM
Net Weight
65.0KG
Shipping weight
77.0KG
Shipping Height
910MM, 91.0CM
Shipping Width
320MM, 32.0CM
Shipping Depth
580MM, 58.0CM
Color
Black
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-15 – 60 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 15000meters
Audible noise at 1 meter from surface of unit
58.0dBA
Protection Class
IP20
Conformance
Approvals
CE, EAC, IEC 62040-1-1, IEC 62040-1-2
Standard warranty
2 years Onsite 8×5
Warranty
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 2 ปีเต็ม
