Description

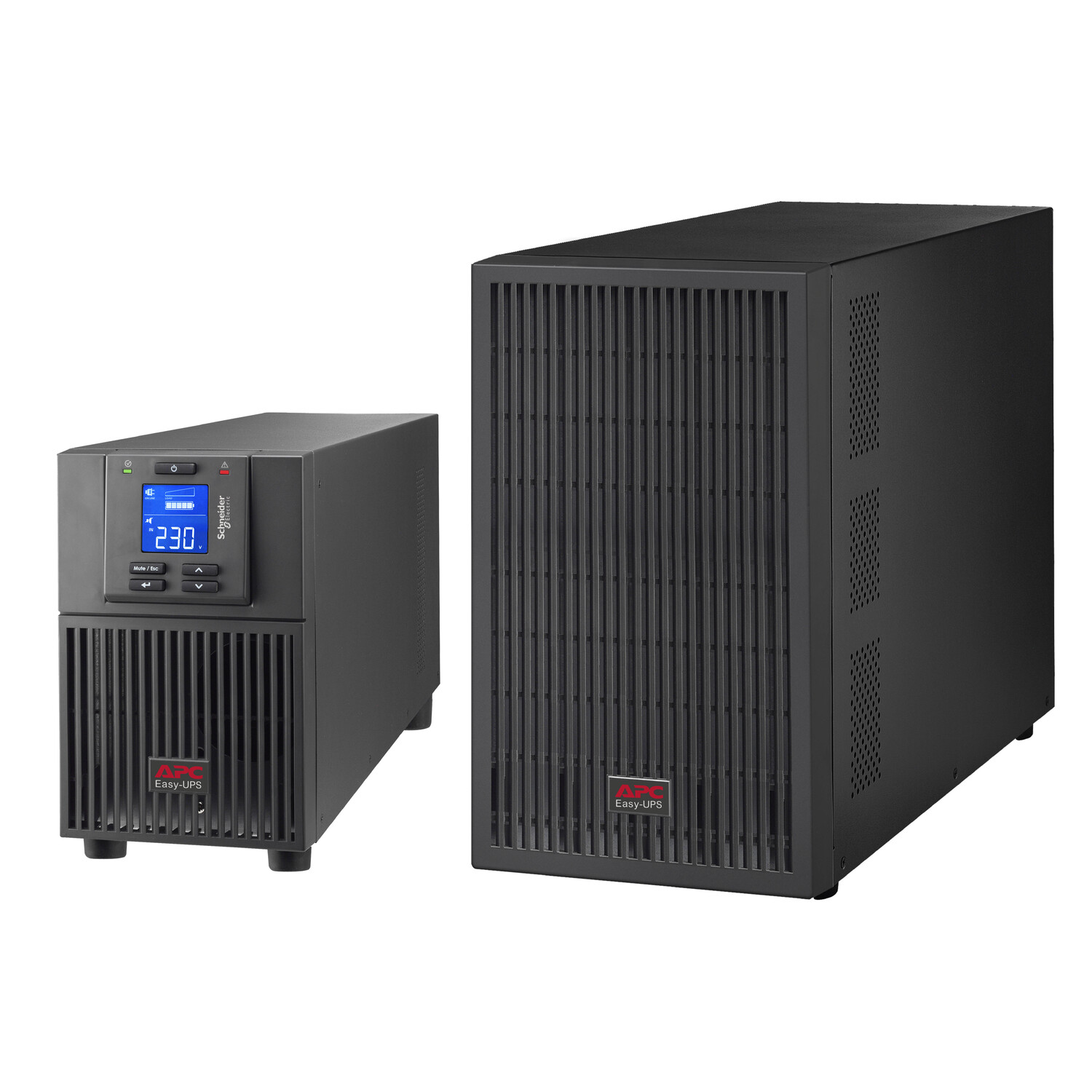

ขอใบเสนอราคา ขาย SRV2KIL-2Y APC Easy UPS SRV 2000VA/1600Watt 230V with External Battery Pack จำนวน VA 2000 VA กำลังไฟ (Watts) 1600 W Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
Technical Specifications
Output
Max Configurable Power (Watts)
1.6kWatts / 2.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
88.0 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
110 – 285 Adjustable (half load), 160 – 280V
Number of Power Cords
1
Efficiency at Full Load
88.0 %
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
4hour(s)
Extended Run Options
Runtime
Efficiency
Communications & Management
Interface Port(s)
DB-9 RS-232, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
600Joules
Physical
Maximum Height
336MM, 33.6CM
Maximum Width
335MM, 33.5CM
Maximum Depth
425MM, 42.5CM
Net Weight
45.4KG
Shipping weight
49.3KG
Shipping Height
465MM, 46.5CM
Shipping Width
560MM, 56.0CM
Shipping Depth
565MM, 56.5CM
Color
Black
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-20 – 50 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 15000meters
Audible noise at 1 meter from surface of unit
50.0dBA
Protection Class
IP20
Conformance
Approvals
CE, EAC, IEC 62040-1-1, IEC 62040-1-2
Standard warranty
2 years Onsite 8×5
Warranty
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 2 ปีเต็ม
