[TDS-h2489FU-4314-1TB]

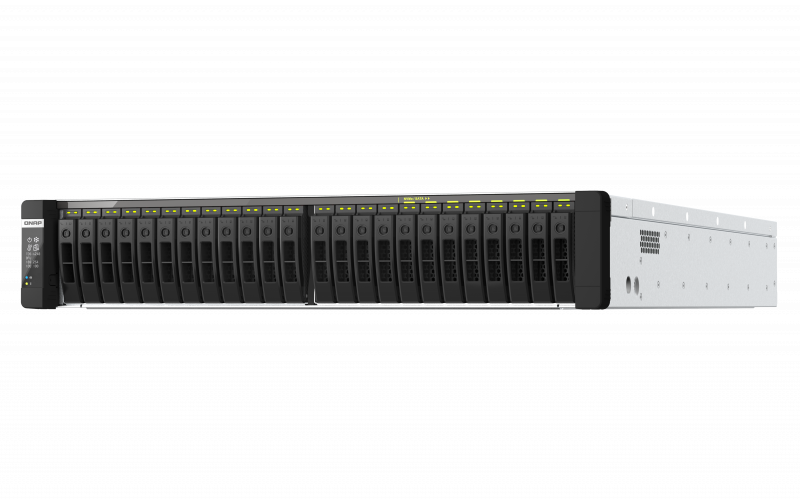

QNAP TDS-h2489FU-4314-1TB 24-Bay all-flash U.2 NVMe PCIe ราคา Discount
ราคาพิเศษกรุณาขอผ่านทาง[email protected]
Contact
ติดต่อสอบถามเช็คสต็อค, ใบเสนอราคาและงานติดตั้งได้เบอร์ด้านล่างนี้
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
02-026-6862 Head Office
097-318-6865 Mr. Arnon
097-285-3476 Ms. Maneerat
095-467-6396 Ms. Sunanta
081-774-8189 Admin (Sales)
ติดต่อทางLine@: @Quiznet.co.th
Description
ขอใบเสนอราคา ขาย QNAP TDS-h2489FU-4314-1TB 24-Bay all-flash U.2 NVMe PCIe ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
TDS-h2489FU-4314-1TB24-Bay all-flash U.2 NVMe PCIe Gen4 dual-processor NAS, 2 x Intel Xeon Silver 4314 16C/32T processor (up to 3.4 GHz), 1TB RDIMM ECC DDR4 RAM, 4 x 2.5GbE LAN, 2 x 25GbE SFP28, iSCSI, RAID, PCIe Gen4 expansion slots, 1200W redundant power supply, without Rail Kit (RAIL-E03)
TDS-h2489FU-4314-1TB
CPU | 2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz |
CPU Architecture | 64-bit x86 |
Encryption Engine | (AES-NI) |
System Memory | 1 TB RDIMM DDR4 ECC (32 x 32 GB) |
Memory Slot | 32 x RDIMM DDR4 ECC (16 x slots per socket) |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 24 x 2.5-inch
The system is shipped without SSD.
For the SSD compatibility list, please visit https://www.qnap.com/compatibility/ |
Drive Compatibility | 2.5-inch bays: 2.5-inch SATA hard disk drives (#17-24) 2.5-inch SATA solid state drives (#17-24) 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
Hot-swappable | |
M.2 Slot | 2 Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s |
SSD Cache Acceleration Support | |
SR-IOV | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M/10M) |
25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
Wake on LAN (WOL) |
Only the 2.5GbE port
|
Jumbo Frame | |
PCIe Slot | 2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x8 *Slot 2 is preinstalled with a 25GbE network adapter.
**Slot 1 provides the width of PCIe Gen4 x16 when Slot 2 is not in use, and provides the width of PCIe Gen4 x8 when Slot 2 is in use. |
USB 3.2 Gen 1 port | 4 |
Form Factor | Rackmount |
LED Indicators | SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address |
Buttons | Power, Reset, OLED |
Dimensions (HxWxD) | 88.3 × 446.2 × 713.2 mm |
Weight (Net) | 21.31 kg |
Weight (Gross) | 27.6 kg |
Operating Temperature | 0 – 35°C (32°F – 95°F) |
Storage Temperature | -20 – 70°C (-4°F – 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 1200W PSU(x2), 100-240Vac Max Wattage: 1200W@200-240Vac 1000W@100-127Vac |
Power Consumption: Operating Mode, Typical | 467.59 W
Tested with drives fully populated.
|
Fan | 6 x 60mm, 12VDC |
System Warning | Buzzer |
Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 10,000 |
Warranty
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 5 ปีเต็ม
