Description
ขอใบเสนอราคา ขาย QNAP TS-1273AU-RP-8G 12-bay Rackmount NAS ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

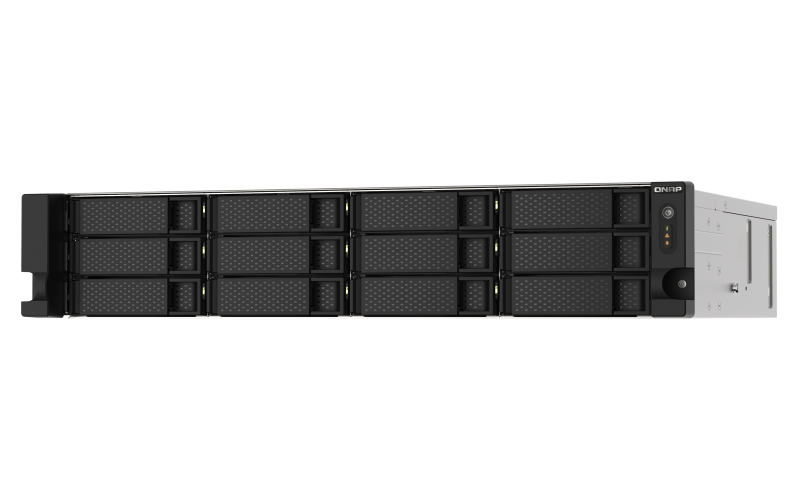

TS-1273AU-RP-8G12-bay Rackmount NAS, AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 8GB DDR4 RAM (2 x UDIMM slots, max. 32GB), 2 x 2.5GbE LAN, optional 10GbE & M.2 NVMe/SATA SSD expansion via PCIe, 2 x PCIe 3.0 x 4 slots, USB 3.2 Gen2 Type-C & Type-A, 2 x 550W PSU
TS-1273AU-RP-8G
CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
CPU Architecture | 64-bit x86 |
Floating Point Unit | |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
System Memory | 8 GB UDIMM DDR4 (1 x 8 GB) |
Maximum Memory | 64 GB (2 x 32 GB) |
Memory Slot | 2 x UDIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | |
M.2 Slot | Optional via a QNAP QM2 PCIe card |
SSD Cache Acceleration Support | |
GPU pass-through | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
10 Gigabit Ethernet Port | Optional via a network adapter |
Wake on LAN (WOL) |
Only the 2.5GbE port
|
Jumbo Frame | |
PCIe Slot | 2 x PCIe Gen3 x4 |
USB 3.2 Gen 1 port | 1 x Type-A |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C 1 x Type-A |
HDMI Output | Optional via a PCIe graphics card |
Form Factor | 2U Rackmount |
LED Indicators | HDD 1-12, Status, LAN, USB, Power |
Buttons | Power, Reset |
Dimensions (HxWxD) | 89 × 482 × 425 mm |
Weight (Net) | 9.69 kg |
Weight (Gross) | 14.62 kg |
Operating Temperature | 0 – 40 °C (32°F – 104°F) |
Storage Temperature | -20 – 70°C (-4°F – 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 300W (x2) PSU, 100 – 240V |
Power Consumption: HDD Sleep Mode | 43.67 W |
Power Consumption: Operating Mode, Typical | 78.92 W
Tested fully populated with WD10EFRX hard drives.
|
Fan | 2 x 80mm, 12VDC |
System Warning | Buzzer |
Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2000 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
