Description
US-16-XG UniFi Switch 16-Port 10 Gigabit
ขอใบเสนอราคา ขาย US-16-XG UniFi Switch 16-Port 10 Gigabit Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification

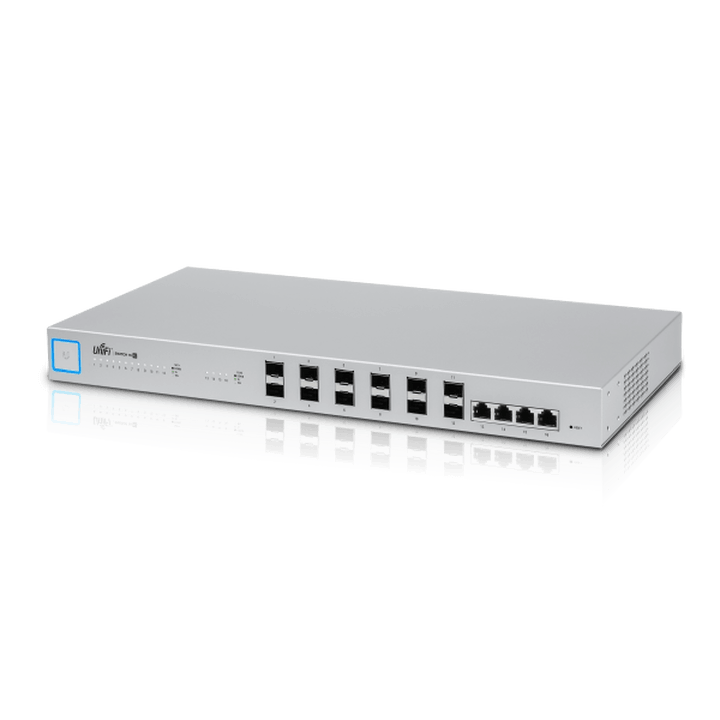

UniFi Switch 16 XG (US-16-XG)
สร้าง และ ขยาย เครือข่ายของคุณด้วยสวิตช์ UniFi® ซึ่งเป็นส่วนหนึ่งของ Ubiquiti Networks® UniFi Enterprise System UniFi Switch 16 XG เป็นสวิตช์ 10 กิกะบิต ที่ได้รับการจัดการอย่างสมบูรณ์แบบ ซึ่งมอบประสิทธิภาพ ที่แข็งแกร่ง และ การสลับที่ชาญฉลาด US 16 XG เป็นสวิตช์ไฟเบอร์แบบ 10G ที่มีการจัดการอย่างเต็มที่พอร์ต 16G ที่ เพิ่มความจุของเครือข่าย โดยรองรับ การเชื่อมต่อแบนด์วิดธ์สูง ที่รวมเข้ากับสวิตช์หลายตัว ในเครือข่ายของคุณ ควบคุมผ่าน UniFi® Controller เหมาะสำหรับเป็น Core Switch เพื่ออัพลิงค์ไปยัง Switch ต่างๆ รองรับ US-48 สูงถึง 12 ตัว
10 Gbps Deployment Example
Supports 12 x US-48, 10 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or Core Server
UniFi US-16-XG เป็นสวิตช์ 10 Gigabit ที่ได้รับการจัดการอย่างสมบูรณ์และให้ประสิทธิภาพดีเยี่ยม US 16 XG เหมาะไว้ใช้เป็น Core switch
- (12) 10G SFP+ Ports
- (4) 10G RJ45 Ethernet Ports
- Centrally Managed Layer 2 Aggregation Switch
- Up to 160 Gbps Total Non-Blocking Throughput
- Up to 320 Gbps Switching Capacity
- 1U Rack-Mountable
ทำงานรวมกับ UniFi Controller
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Brand | Ubiquiti |
Model | US-16-XG |
Enclosure Characteristics | SGCC Steel |
Networking Interface | (12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports |
Management Interface | (1) RJ45 Serial Port Out-of-Band, Ethernet Ports In-Band |
Total Non-Blocking Throughput | 160 Gbps |
Switching Capacity | 320 Gbps |
Forwarding Rate | 238.10 Mpps |
Max.DC Power Consumption | 36W (Excludes SFP/SFP+ Modules) |
Power Method | AC :100-240VAC/50-60 Hz, Universal Input DC :DC 56W, 57 to 20V, with 48/24VDC Terminal Block |
Supported Voltage Range | AC : 100 to 240VAC DC : 57 to 20VDC |
Power Supply | AC/DC, Internal, 750W DC |
Dimensions | 443 x 221 x 43 mm (17.44 x 8.70 x 1.69″) |
Weight | 2.62 kg (5.78 lb) |
Rack Mount | Yes, 1U High |
ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
Shock and Vibration | ETSI300-019-1.4 Standard |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
Download | Quick Start Guide Datasheet |
