Overview

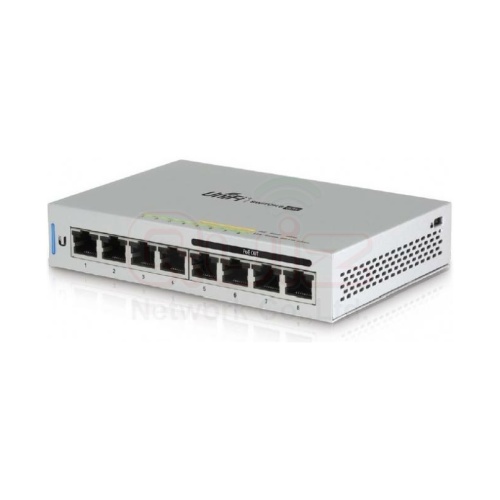

Ubiquiti Unifi Switch US-8 L2-Managed Gigabit Switch ขนาด 8 Port ความเร็ว Gigabit จ่ายไฟ POE Passive 48VDC ผ่าน Port 8 ควบคุมการทำงานผ่าน Unifi Software Controller รองรับการทำ VLAN

Enclosure Characteristics

SGCC Steel

Switching Capacity

8 Gbps

Total Non-Blocking Throughput

16 Gbps

Forwarding Rate

11.9 Mpps

Max. Power Consumption

12W (Excluding PoE Output)

Max. Passive PoE Wattage per Port

PoE Mode 1: 12W @ 802.3at
PoE Mode 2: 12W @ 48V
DC Input Mode: 12W @ 48V

Passive PoE Voltage Range

Depends on Power Source

Power Method

(1) DC 48V, Max. 1.25A
(1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6)

Supported Voltage Range

DC: 48V; 48V Mode: 56V to 40V

Power Supply

External AC/DC Adapter, 48V, 0.5A

LEDs

PoE (Port 8), Speed/Link/Activity (All Ports)

Networking Interfaces

(8) 10/100/1000 Mbps RJ45 Ports

PoE In Interface (Port 1)

PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
PoE Mode 2: 48V (2-Pair Pins +4, 5; -7, 8)

PoE Out Interface (Port 8)

PoE Mode 1: 48V (Pins +1, 2; -3, 6)
PoE Mode 2: Passive 48V (2-Pair Pins +4, 5; -7, 8)
DC Input Mode: DC Passthrough (Pins +1, 2; -3, 6)

Management Interface

Ethernet In-Band Management

ESD/EMP Protection

Air: ? 24 kV, Contact: ? 24 kV

Operating Temperature

-5 to 45? C (23 to 113? F)

Operating Humidity

5 to 95% Noncondensing

Shock and Vibration

ETSI300-019-1.4 Standard

Certifications

CE, FCC, IC

Dimensions

148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″)

Weight

0.43 kg
