Description

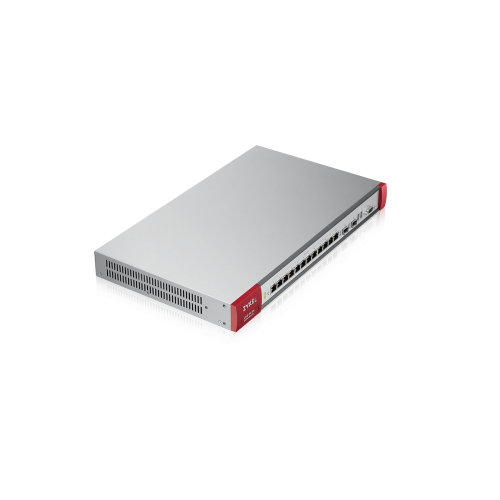

USG FLEX 700 + Bundled 1 year for all License and services
Specs
Data transmission
Firewall throughput
The average rate of successful data delivery over through a Firewall. The throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second or data packets per time slot.
5400 Mbit/s
VPN throughput
1100 Mbit/s
VPN (IMIX) throughput
550 Mbit/s
Performance
Heat dissipation
The heat generated by the power supply.
120.1 BTU/h
Certification
FCC 15 (A), CE EMC (A), C-Tick (A), BSMI
Network
VPN tunnels quantity
500
Number of users
The number of people that use or can use this product.
150 user(s)
Number of VLANs
128
Active TCP connections (max)
1600000
Security
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
HTTPS,IPSec,SSL/TLS
VPN support
IKEv2, IPSec, SSL, L2TP/IPSec
Management features
LED indicators
Web-based management
Using a website/web application to manage something.
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
12
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Console port
RJ-45
SFP module slots quantity
2
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-240 V
AC input frequency
50/60 Hz
Input current
2.5 A
Power consumption (max)
The maximum amount of power used by the device.
46 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 – 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-30 – 70 °C
Operating relative humidity (H-H)
10 – 90%
Storage relative humidity (H-H)
10 – 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
430 mm
Depth
The distance from the front to the back of something.
250 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
3.3 kg
Packaging data
Package width
The distance from one side of the packaging to the other.
519 mm
Package height
The distance from the top to the bottom of the packaging.
392 mm
Package depth
The distance from the front to the back of the packaging.
163 mm
Package weight
Weight of the packaged product.
4.8 kg
Packaging content
Cables included
AC
Rack mount kit
Warranty
Warranty / เงื่อนไขการรับประกัน: รับประกันสินค้า 3 ปีเต็ม
