Description

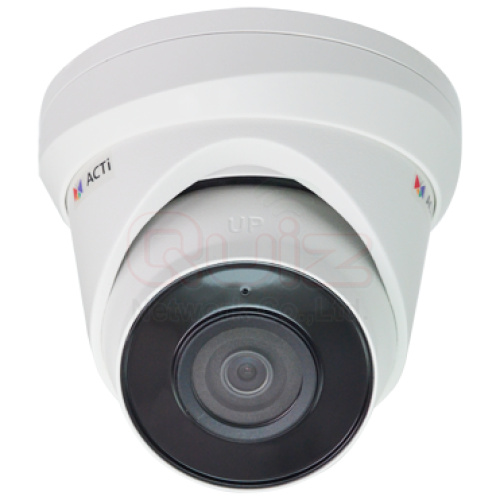

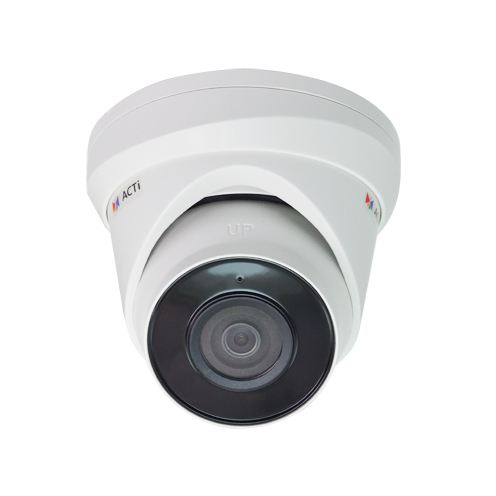

2MP Outdoor Dome with D/N Adaptive IR Basic WDR SLLS Fixed Lens
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F2.0
- Basic WDR
- H.265 Compression
- Super wide angle
- Not available in the USA
Device
Product Type | Dome |
Maximum Resolution | 2MP |
Application Environment | Outdoor |
Image Sensor | Progressive Scan CMOS |
Sensor Size | 1/2.7 “ |
Day / Night | Yes |
Low Light Sensitivity | Superior |
Minimum Illumination | Color: 0.001 lux; B/W: 0 lux (IR LED on) |
Mechanical IR Cut Filter | Yes |
IR LED | Adaptive IR LED (850 nm) |
IR Working Distance | 30m |
Electronic Shutter | 1/3-1/100000 second (auto mode) |
S/N Ratio | 62 dB |
Lens
Focal Length | Fixed focal, f2.8mm |
Aperture | F2.0 |
Lens Mount | Board mount |
Horizontal Viewing Angle | 110.3° |
Vertical Viewing Angle | 58.8° |
Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-75°, Rotation: 0°-360° |
Video
Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 640 x 360 30 fps at 320 x 240 |
Multi-Streaming | Simultaneous dual streams |
Bit Rate | 32Kbps – 8Mbps (per stream) |
Wide Dynamic Range | Basic WDR (80 dB) |
Image Enhancement | White Balance, Saturation, Brightness, Contrast, Sharpness, Automatic gain control |
Digital Noise Reduction | 3D DNR |
Privacy Mask | Yes |
Text Overlay | Yes |
Audio
Audio Type | 1-way, Built-in Microphone |
Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM |
Network
Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
Event
Event Trigger | Video motion detection, Tampering detection |
Integration
ONVIF Compliant | Yes, Profile S |
General
Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
Power Consumption | 5 W (DC), 6.5 W (PoE) |
Weight | 556g (1.226lb) |
Dimensions | (Ø x H): 127.2mm x 94.6mm (5.01″ x 3.72″) |
Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
Approvals | CE, FCC, EAC, BIS, IP66, IK10 (metal casing) |
