Description
ขอใบเสนอราคา ขาย USG FLEX 100W USG FLEX Firewall ราคา Discount ราคา ถูก โปรโมชั่นพิเศษ ได้ที่นี้
specification
USG FLEX 100W1xWAN, 1xSFP, 4xLAN / DMZ GbE ports, 1xUSB / Dual-Band 802.11ac / Firewall throughput 900 Mbps / 40 IPSec/L2TP VPN, 30 SSL VPN, VPN thrP 100 Mbps / Wireless Controller support up to 8/24 Aps

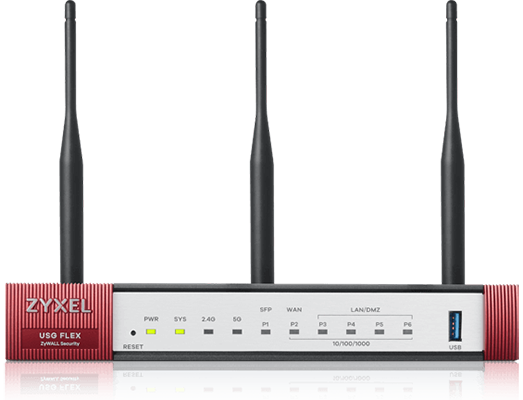

Zyxel USG FLEX 100W Firewall
The newly designed platform gains up to 125% firewall performance
Model | USG FLEX 100 | USG FLEX 100W | USG FLEX 200 | USG FLEX 500 | USG FLEX 700 |
---|---|---|---|---|---|
Hardware Specifications | |||||
10/100/1000 Mbps RJ-45 ports | 4 x LAN/DMZ, 1 x WAN, 1 x SFP | 4 x LAN/DMZ, 1 x WAN, 1 x SFP | 4 x LAN/DMZ, 2 x WAN, 1 x SFP | 7 x (Configurable), 1 x SFP | 12 (configuratble), 2 x SFP (configurable) |
USB3.0 ports | 1 | 1 | 2 | 2 | 2 |
Console port | Yes (RJ-45) | Yes (RJ-45) | Yes (DB9) | Yes (DB9) | Yes (DB9) |
Rack-mountable | – | – | Yes | Yes | Yes |
Fanless | Yes | Yes | Yes | – | – |
System Capacity & Performance*1 | |||||
SPI firewall throughput (Mbps)*2 | 900 | 900 | 1,800 | 2,300 | 5,400 |
VPN throughput (Mbps)*3 | 270 | 270 | 450 | 810 | 1,100 |
VPN IMIX throughput (Mbps)*3 | 100 | 100 | 100 | 240 | 550 |
IDP throughput (Mbps)*4 | 540 | 540 | 1,100 | 1,150 | 2,000 |
AV throughput (Mbps)*4 | 360 | 360 | 570 | 800 | 1,450 |
UTM throughput (AV and IDP)*4 | 360 | 360 | 550 | 800 | 1,450 |
Max. TCP concurrent sessions*5 | 300,000 | 300,000 | 600,000 | 1,000,000 | 1,600,000 |
Max. concurrent IPsec VPN tunnels*6 | 40 | 40 | 100 | 300 | 500 |
Concurrent SSL VPN users | 30 | 30 | 60 | 150 | 150 |
VLAN interface | 8 | 8 | 16 | 64 | 128 |
Concurrent devices logins (default/max.)*7*8 | 64 | 64 | 200 | 200 / 300 | 500 / 800 |
Speedtest Performance | |||||
SPI firewall throughput (Mbps)*11 | 760 | 760 | 810 | 810 | 840 |
WLAN Management | |||||
Managed AP number (default/max.)*7 | 8 / 24 | 8 / 24 | 8 / 40 | 8 / 72 | 8 / 264 |
Recommend max. AP in 1 AP Group | 10 | 10 | 20 | 60 | 200 |
Security Service | |||||
Anti-Malware*7 | Yes | Yes | Yes | Yes | Yes |
IPS (IDP) | Yes | Yes | Yes | Yes | Yes |
Application Patrol*7 | Yes | Yes | Yes | Yes | Yes |
Email Security | Yes | Yes | Yes | Yes | Yes |
Web filtering (CF)*7*9 | Yes | Yes | Yes | Yes | Yes |
SecuReporter Premium*7 | Yes | Yes | Yes | Yes | Yes |
Key Features | |||||
VPN | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec |
SSL (HTTPS) inspection | Yes | Yes | Yes | Yes | Yes |
2-Factor Authentication | Yes | Yes | Yes | Yes | Yes |
Hotspot Management*7 | – | – | Yes | Yes | Yes |
Ticket printer support*10 / Support Q’ty (max.) | – | – | Yes (SP350E) / 10 | Yes (SP350E) / 10 | Yes (SP350E) / 10 |
Microsoft Azure | Yes | Yes | Yes | Yes | Yes |
Amazon VPC | Yes | Yes | Yes | Yes | Yes |
Device HA Pro | – | – | – | Yes | Yes |
Link Aggregation (LAG) | – | – | – | Yes | Yes |
Model | USG FLEX 100 | USG FLEX 100W | USG FLEX 200 | USG FLEX 500 | USG FLEX 700 | |
---|---|---|---|---|---|---|
Power Requirements | ||||||
Power input | 12V DC, 2A max. | 12V DC, 2A max. | 12V DC, 2.5A max. | 12V DC, 4.17A | 100-240V AC, 50/60Hz, 2.5A max. | |
Max. power consumption (Watt Max.) | 12.5 | 12.5 | 13.3 | 24.1 | 46 | |
Heat dissipation (BTU/hr) | 42.65 | 42.65 | 45.38 | 82.23 | 120.1 | |
Physical Specifications | ||||||
Item | Dimensions (WxDxH) (mm/in.) | 216 x 147.3 x 33/
8.50 x 5.80 x 1.30 |
216 x 147.3 x 33/
8.50 x 5.80 x 1.30 |
272 x 187 x 36/
10.7 x 7.36 x 1.42 |
300 x188 x 44/ 16.93 x 7.4 x 1.73 | 430 x 250 x 44/
16.93 x 9.84 x 1.73 |
Weight (Kg/lb.) | 0.85/1.87 | 0.85/1.87 | 1.4/3.09 | 1.65/3.64 | 3.3/7.28 | |
Packing | Dimensions (WxDxH) (mm/in.) | 284 x 190 x 100/
11.18 x 7.48 x 3.94 |
284 x 190 x 100/
11.18 x 7.48 x 3.94 |
427 x 247 x 73/
16.81 x 9.72 x 2.87 |
351 x 152 x 245/
13.82 x 5.98 x 9.65 |
519 x 392 x 163/
20.43 x 15.43 x 6.42 |
Weight (kg/lb.) | 1.40/3.09 | 1.40/3.09 | 2.23 (W/O bracket)
2.42 (W/ bracket) |
2.83/6.24 | 4.8/10.58 | |
Included accessories | • Power adapter
• RJ-45 – RS-232 cable for console connection |
• Power adapter
• RJ-45 – RS-232 cable for console connection |
• Power adapter
• Rack mounting kit (optional, by regions) |
• Power adapter
• Power cord • Rack mounting kit |
• Power cord
• Rack mounting kit |
|
Environmental Specifications | ||||||
Operating | Temperature | 0°C to 40°C (32°F to 104°F) | 0°C to 40°C (32°F to 104°F) | 0°C to 40°C (32°F to 104°F) | 0°C to 40°C (32°F to 104°F) | 0°C to 40°C (32°F to 104°F) |
Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | |
Storage | Temperature | -30°C to 70°C (-22°F to 158°F) | -30°C to 70°C (-22°F to 158°F) | -30°C to 70°C (-22°F to 158°F) | -30°C to 70°C (-22°F to 158°F) | -30°C to 70°C (-22°F to 158°F) |
Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | |
MTBF (hr) | 989810.8 | 989810.8 | 529688.2 | 529688.2 | 947736 | |
Acoustic Noise | – | – | – | 24.5dBA on < 25degC
Operating Temperature, 41.5dBA on full FAN speed |
24.5dBA on < 25degC
Operating Temperature, 41.5dBA on full FAN speed |
|
Certifications | ||||||
EMC | FCC Part 15 (Class B), CE EMC (Class B),BSMI | FCC Part 15 (Class B), CE EMC (Class B),BSMI | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI | FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI | FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI | |
Safety | LVD (EN60950-1), BSMI | LVD (EN60950-1), BSMI | LVD (EN60950-1), BSMI | LVD (EN60950-1), BSMI | LVD (EN60950-1), BSMI |
